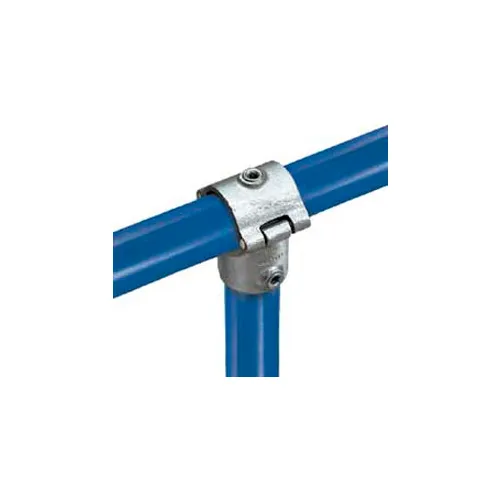

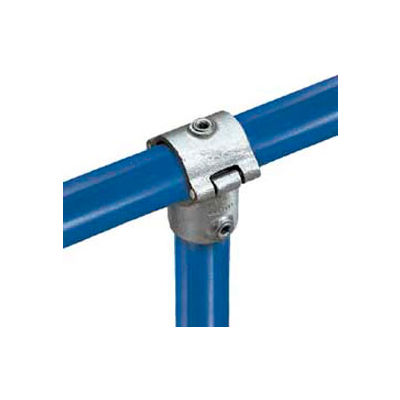

Kee Safety - A10-7 - Split Single Socket Tee, 1-1/4" Dia.

Kee Klamp® Fittings Swivel Tee An internal swivel fitting, designed to accommodate varying angles on handrailing for staircases, ramps, or bracing. Used in conjunction with Types 10, 15, 25 or 45, it eliminates the need for specially drilled angle fitting Type 27 and Type 28.

Kee Klamp® Fittings 90° Side Outlet Tee Most frequently paired with Type 20 to give a 90° corner joint for the middle rail of safety railing and other rectangular structures. The upright passes through the fitting.

KEE KLAMP® FITTINGS SINGLE SOCKET TEE No threading or welding or pipe required! Build strong rigid structures: railings, racks, awning frames, fencing and 1,001 other applications. Build your own rack, guard rails, tables, etc. Long lasting aluminum fittings are manufactured from high-grade aluminum silicon magnesium and provide lightweight corrosion resistant esthetic look. Set-screw carries a vertical ultimate load of up to 2000 lbs. Allen wrench is the only tool you need.

Kee Klamp® Fittings 90° Three Socket Tee Most commonly used as the 90 degree joint between the top rail and an intermediate upright on guardrailing. As there are two socket set screws in the sleeve, this Kee Lite fitting can be used where a join is required in the horizontal tube. As an alternative, it is possible to use a Type L10 fitting in its vertical position in place of the Type L25, using the latter only where a join in the tubing occurs.

KEE KLAMP® FITTINGS SINGLE SOCKET TEE Designed to give a 90 degree butt joint between two tubes. Frequently used for the joint between end uprights and the middle rail on guardrailing where the site is straight and level. Also for base ties on racking. This fitting cannot be used where the tubing through the sleeve 'A' is required to be joined within the Kee Lite fitting.
