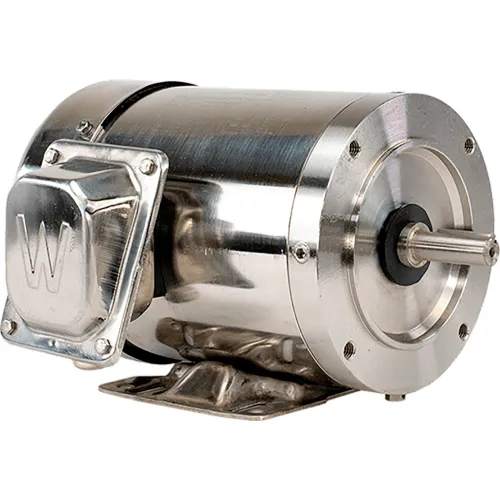

Worldwide Electric Washdown Duty Motor, 0.5 HP, 1800 RPM, 230/460V, 56C Frame, C-Face with Feet

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.

WorldWide Electric manufactures a wide range of three-phase stainless steel motors for wash-down, high-pressure, high-temperature applications, including premium efficient, IP69K rated, BISSC/BEAG certification, TEFC or TENV, close-coupled JM, and fractional motor options.

1/2 - 2 HP

1800 RPM

230/460 Volt at 60 Hz

1.15 Service Factor

TEFC Enclosure

C-Face with Feet and Round Body (Footless)

IP56 Protection

Class F insulation

304 Stainless Steel Frame, Bracket and Junction Box

Stainless Steel Shaft

Anti-Rust Film Applied to Rotor

Double Lip Seals on Both Ends of the Motor with an Additional Shaft Slinger on the Drive-End

O-Ring Installed on Endbells to Prevent Moisture Intrusion

Stainless Steel Cord Connector Included

CSA Certification

Premium Efficiency (1 - 2 HP)
