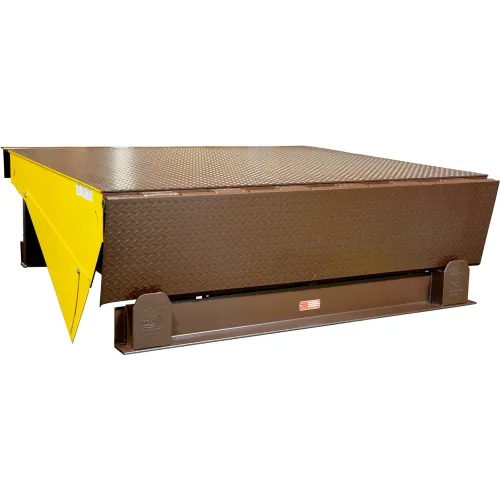

Vestil™ Steel Electric Hydraulic Dock Leveler, 124"L x 72"W, 30000 lb. Capacity

DLM POWERED EDGE OF DOCK LEVELER Attaches easily to the steel nosing of an existing dock, saving valuable dock loading space; no concrete work or pit necessary. All models have a 5" upward and 5" downward working range. A full 15" lip projects 12" beyond bumper. High strength 3/8" steel safety plate and heavy-duty hinges. Automatically releases and returns to stored position when truck exits. Supplied with two 12" x 14" molded rubber bumpers and reinforced mounting blocks. Push button control operates a 115V 1/2 HP motor which raises and lowers, extends and retracts the leveler for easy ...

DLM PowerStop® TRUCK & VEHICLE RESTRAINTS Limit Trailer Creep & the Chance of Premature Truck Departure from your Dock This non-impact, self-aligning truck restraining system offers enhanced safety for your loading dock. Versatile restraint can be easily integrated with any mechanical, hydraulic or pneumatic leveler, and edge-of-dock or top-of-dock units. The low-profile PowerStop® restraint will withstand up to 30,000 lbs. of pull-out force and has a service range of 0" to 10" horizontally from the face of the dock bumpers and 12" to 29-½" vertically above the drive approach. Designed to ...

HYDRAULIC PIT MOUNT DOCK LEVELER Allows for easy loading and unloading of trucks at your dock. Levelers are installed in a concrete pit (professional installation is required). Heavy-duty steel offers ¼" thick treadplate deck and 16"H lip. Includes two laminated bumpers. Service range is 12" above and below dock. Hydraulic Leveler offers simple operation with the push of a button for high usage docks. Electrically activated hydraulic pump raises deck. 16" lip automatically extends to allow deck to descend onto trailer. When truck pulls away, the deck descends to the full down position, ...

The mechanical dock leveler is constructed of heavy duty checkered plate deck steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Features: 2 laminated bumpers included Spring operated mechanical pull-chain makes use easy Telescopic side-mounted toe guards cover opening through the entire service range Complies with CS 202-56, OSHA and ANSI MH14.6

The electric hydraulic dock leveler is ideal for high usage dock areas. The Edge-O-Dock leveler permanently attaches to the face of a dock. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck ...
