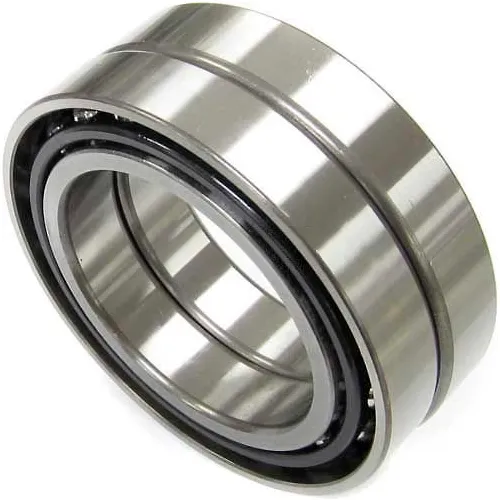

NACHI Super Precision Bearing 7220CDUP4, Universal Ground, Duplex, 100MM Bore, 180MM OD
NACHI Features
NACHI Features
- Two single row angular contact ball bearings (15° contact angle P4) are assembled to provide a high degree of rigidity in both radial & axial directions
- These Universal Flush Ground bearings can be mounted in DB, DF or DT
- Meets the needs of machine tool manufacturers for precision
- These bearings function at lowest possible temperature for wide range of speeds & operating loads
- BRAND Nachi
- BEARING STYLE Duplex
- BORE DIAMETER MILLIMETERS 100
- OUTER DIAMETER MILLIMETERS 180
- WIDTH MILLIMETERS 34 X 2
- DYNAMIC LOAD RATING (N) 244,000 per pair
- STATIC LOAD RATING (N) 255,000 per pair
- CAGE TYPE Phenolic
- MANUFACTURERS PART NUMBER 7220CDUP4
- PRELOAD Light
- TOLERANCE P4 (ABEC7)
- SERIES 7200
- CONTACT ANGLE 15
- MAX SPEED / OIL (RPM) 6300
