Kellogg Compressor

Model # :WBB1654266

MPN #: L001128

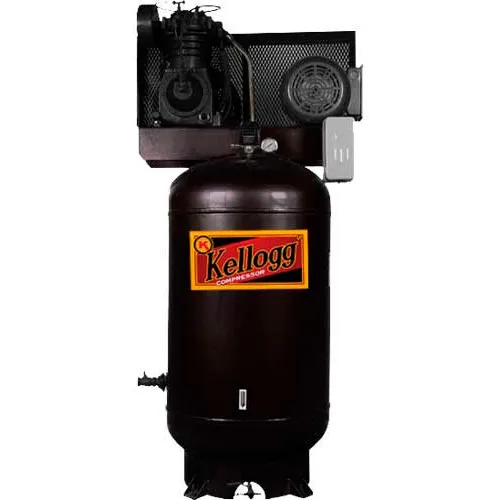

Kellogg-American L001128, 5 HP, Two-Stage, 80 Gallon, Vertical, 175 PSI, 21.6 CFM, 1-Phase, 208-230V

Product Description
Kellogg-American L001128, 5 HP, Two-Stage, 80 Gallon, Vertical, 175 PSI, 21.6 CFM, 1-Phase, 208-230V

TEFC (Totally Enclosed, Fan Cooled) Motors. Kellogg American Pumps. IEC Rated Magnetic Starters (Standard). Vertical ASME Certified Tanks. Kellogg Industrial Compressors are engineered and built for rugged use. We use heavy duty, cast iron pumps, premium single phase and three phase motor options, standard 'dual' control, and standard magnetic starters. Every component is specified to provide continuous, industrial duty performance. Our Industrial Compressors are designed for professional use, working in extreme environments, providing all the air needed to get the job done

PRICE
$3,699.00

1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight540 lbs
Tank Size80 gal
Tank Outlet3/4"
Flywheel13.75"
Belt Size2B63 in

Product Details

Assembly RequiredNo
Pump Speed1750 rpm
PumpK335
Max PSI175 psi
MaterialCast Iron
Phase1
CFM @ 175 PSI16.2 CFM
Tank OrientationVertical
Manufacturers Part NumberL001128
Pump TypeLP335
CFM @ 90 PSI17.7 CFM
BrandKellogg Compressor
Frequency60 Hz
CFM21.6 CFM
Horsepower5 HP
Amperage22.2-22.9 A
Voltage208-230 V
ControlPressure Switch/IECRated Magnetic Starter
Operating Pressure145-175
Full Load Amps22.9-20.2 FLA
Number of Cylinders2

Compliance & Certifications

CertificationsASME Certified
