- Dual voltage - 120/240 VAC, 50/60 Hz
- Adjustable horsepower settings
- Barrier terminal strip
- Packaged bridge supply (full wave)
- 1% speed regulation with armature voltage
- Feedback; 1/2% with tach feedback
- Adjustable minimum speed (0-30% of max.)
- Adjustable maximum speed (66-110% of base)
- Adjustable IR compensation
- Adjustable linear acceleration (0.5-8 sec.)
- Adjustable current limit to 15 amps
- Line voltage compensation
- 5K ohm speed potentiometer
- With leads, knob and dial included
- Power on/off switch
- 50:1 speed range
- Overload capacity: 150% for one minute
- Transient voltage protection
- Voltage following mode or DC tachometer
- Follower by supplying ungrounded analog
- Input signal (0-12 VDC)
- DC tachometer feedback (6 V at base speed)
- Inhibit circuit - permits start and stop
- Without breaking AC lines
- Remote start/stop via pot circuit or inhibit circuit
- Shunt field supply provided (1 amp max.;
- 100 V for 120 VAC; 200 V for 240 VAC input)
- AC line fuse
- Rated NEMA 4/12 with threaded conduit holes

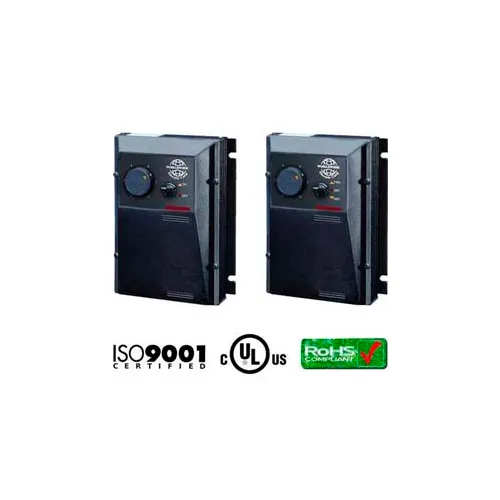

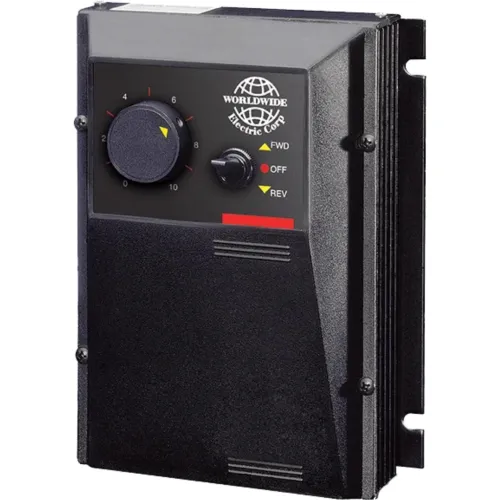

Worldwide Electric Variable Speed DC Motor Control WDCCONTREV, 120 VAC, 1/8 - 1.0 HP
Write a Review
|
Questions & Answers (0)
Product Description
Features
PRICE
$855.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Product Details
| Manufacturers Part Number | WDCCONTREV |
| Output | 0-90 VDC BTU |
| Horsepower | 1/8 - 1.0 HP |
| Includes | Reversing (Forward/Off/Reverse) |
| Phase | 3 |
| Brand | Worldwide Electric Corporation |
