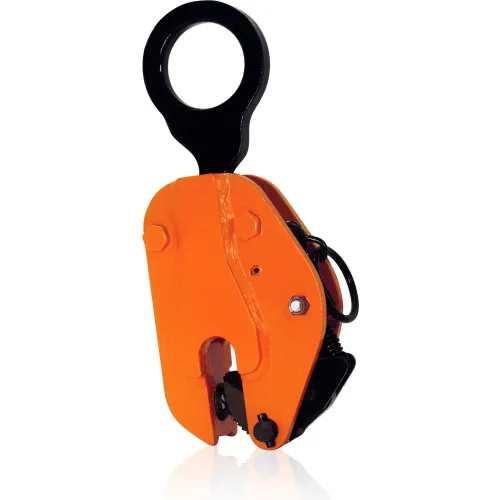

Renfroe Vertical Plate Clamp, Orange, Steel, 1000 Lbs Capacity, 3/4" Opening

The Model JPA is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180 degree arc. Incorporates a push button auxiliary lock. Permits side loading of lifting shackle to 90 degrees by derating clamp's rated capacity. Model JPA incorporates a pivoting shackle that permits side loading of the lifting shackle at 100 percent of rated capacity from vertical to 30 degrees, 75 percent of rated capacity between 30 and 45 degrees and 50 percent of rated capacity between 45 and 90 degrees. Made In The USA.

For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions. Features: With articulated lifting shackle for universal lifting flexibility at various angles The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below Standard with 2 pivots for extra powerful clamping force Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force ...

Heavy-duty plate clamps are designed to vertically lift and turn plate material. These lifting clamps include a pivoting bail for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamps feature a drop-forged steel case for maximum strength. Meets ASME B30.20 specifications.Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

For vertical lifting, transporting and turning of all steel plates with a hardness of max. 55 HRC. Please ask for special specifications. Features: Equipped with an extra hardened pivot and cam Cam is colored green for easy identification Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered Clamp is locked in closed as well as open position Lightweight design for easy handling Tough quality heavy duty welded shell body 3 TSEU-H Hard Vertical Plate Lifting Clamp with 0-1.37 inch jaw opening & 6600 lbs Working ...

The Model LJ is a vertical lifting clamp capable of turning a plate from horizontal to vertical and back through the same ninety-degree arc. It is small and easy to handle in capacities through three tons. The Model LJ incorporates a "Lock-Closed" feature which facilitates attaching the clamp to the plate. Made In The USA.
