Heavy-duty plate clamps are designed to vertically lift and turn plate material. These lifting clamps include a pivoting bail for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamps feature a drop-forged steel case for maximum strength. Meets ASME B30.20 specifications.Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
Share
Spec Sheet

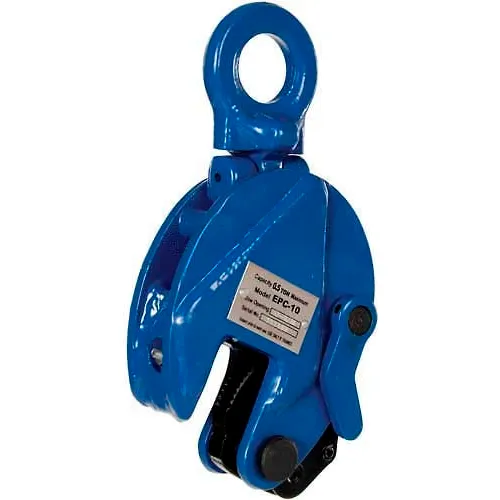

Vertical Plate Clamp Lifting Attachment EPC-10 1000 Lb. Capacity
(3)
|
Questions & Answers (0)
Product Description
PRICE
$178.95
1
1
Bulk Pricing
Quantity
Pricing
Buy 1 unit - 2 units
178.95
Buy 3+ units
159.95Save $19.00 (11%)
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight Capacity | 1000 lbs |
| Weight | 8 lbs |
| Throat Depth | 1.6 in |
| Max Plate Thickness | 0.60 in |
| Bail Opening | 1.1 in |
Product Details
| Assembly Required | No |
| Type | Vertical |
| Material | Steel |
| Color | Blue |
| Manufacturers Part Number | EPC-10 |
| Brand | Vestil |
