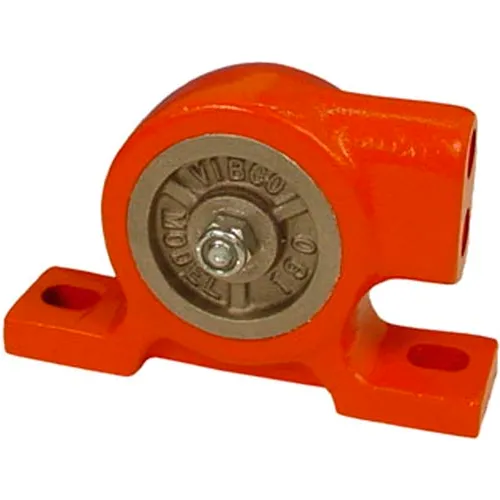

Vibco Pneumatic Ball Vibrator - V-190

Model 10 series pistons single attaching head, 80 PSI max operating pressure, 13000 VPM, 5 CFM Lubricated air is mandatory for proper operation of all piston type vibrators.

70-3/4S Silent Air Cushion End-tapped Pneumatic Piston Vibrator. 3/4" dia. piston (19 mm), 3/8-24 threaded mounting hole (also available with M10 x 1.5 metric thread). 80 PSI max operating pressure, 5100 VPM, 5 CFM. Also available with Exhaust Manifold, or as Impacting type. Lubricated air is mandatory for proper operation of all piston type vibrators.

55 Series Silent air cushioned piston vibrators, one piece cast iron design, slotted mounting holes to accomodate a variety of competitive bolt pattern. 80 PSI max operating pressure. 6600 VPM, 5 CFM. Piston style vibrators must have filter regulator and lubricator for proper operation.

Model 70 end tapped piston series, with a tap size available in metric M12 x 1.75 or standard 1/2-20 thread. 80 PSI max operating pressure, 4200 VPM, 9 CFM. Lubricated air is mandatory for proper operation of all piston type vibrators.

BB series dual mount Ball style vibrators designed for applications requiring small to medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 60 PSI max. operating pressure, 15000 VPM, at 8 CFM of air, with 140 lbs of force. 1/4" NPT Inlet & Exhaust Ports. Cast Iron (Malleable) Housing. Ball style vibrators must have a filter, regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.
