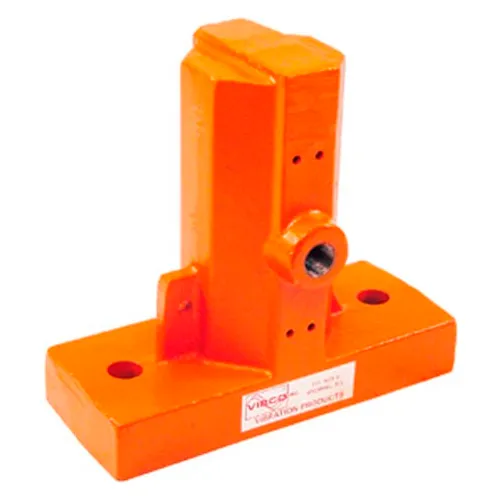

Vibco Pneumatic Piston Vibrator - 55-1-1/2S

50 series Pneumatic Piston Vibrator, Silent air cushioned style. Nominal 1" dia. piston. Three piece steel construction. 6500 vibrations per minute (VPM) @ 80 psi (max. operating pressure). 5 CFM. All piston style vibrators must have a Filter-Regulator and Lubricator for proper operation.

VS series Silent Pneumatic Turbine Vibrator. High Speed, quick starting version. Built in exhaust muffler. Cast iron housing standard (Aluminum available). 12000 VPM, 10.5 CFM, @ 60 PSI, with 480 lbs. of force, continuous duty. Intermittent duty to 80 PSI maximum. Factory recommended filter regulator for optimum performance.

VS series Silent Turbine Vibrator with built in muffler for High Temperature Applications, 350° F max. (180° C). Graphite Impregnated Bearings. VS series silent turbine vibrators have a built in muffler, available in cast iron housing. 80 PSI max operating pressure, 4500 VPM, 21 CFM, 900 lbs of force. No lubrication required Factory recommended filter regulator for optimum life and performance.

Model 10 series pistons, single attaching head, 80 PSI max operating pressure, 8700 VPM, 4.5 CFM Air Cushioned. Lubricated air is mandatory for proper operation of all piston type vibrators.

Model 10 series pistons single attaching head, 80 PSI max operating pressure, 13000 VPM, 5 CFM Lubricated air is mandatory for proper operation of all piston type vibrators.
