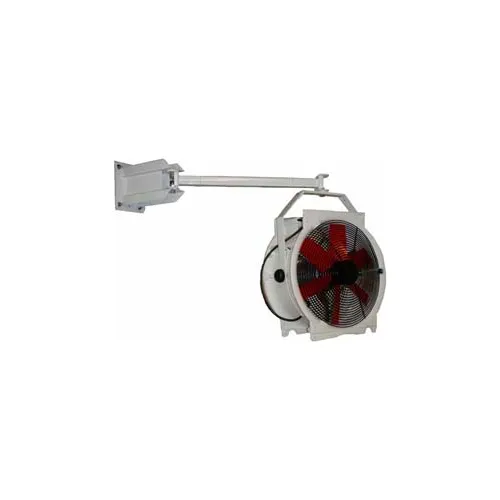

The deep Venturi creates a focused air stream to reach farther into the trailer. The motor and blade combination create high volumes of air, but are matched together to provide an efficient fan system. Built with corrosion resistant components the fan is excellent in wet environments. Light weight, durable plastic outer shell. Heavy duty motor uses sealed ball bearings front and rear, precision C4 Clearance, specialty designed high temp lubricants and protection for optimized durability. Engineered support arm sold with the fan is welded box steel, and painted white to match the fan housing. 3 Year Limited Warranty on the motor.
Multifan 16" Totally Enclosed Truck Dock Fan, 5,480 CFM, 1 Phase, 1/3 HP
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,259.00
1
1
Ships in 17 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 36 in |
| Width | 25 in |
| Depth | 14 in |
| Height | 25 in |
| Weight | 43 lbs |
| Fan Diameter | 20 in |
Product Details
| Assembly Required | Yes |
| Max Ambient Temperature | 140 °F |
| Number of Speeds | Variable |
| Fan Type | Industrial |
| Number of Blades | 6 |
| For Use With | Truck Cooling, Pick Modules, Tight Spaces |
| Motor Type | Totally Enclosed Fan Cooled |
| Mounting Location | Wall |
| Wattage | 432 W |
| Material | Polypropylene |
| Phase | 1 |
| Blade Type | Polypropylene |
| Manufacturers Part Number | B4E50K2M72392 |
| Indoor/Outdoor | Indoor/Outdoor |
| Brand | Multifan |
| RPM | 1600 rpm |
| Type | Dock Fan |
| CFM | 5480 CFM |
| Horsepower | 1/3 HP |
| Color | Gray |
| Amperage | 3.6 A |
| Hertz | 60 Hz |
| RPM High | 1,600 rpm |
| Voltage | 120 V |
| CFM High | 5480 CFM |
| Description | Truck Dock Fan |
| Oscillating/Non Oscillating | Non Oscillating |
| Watts | 432 W |
| Decibels | 56 |
| Motor Insulation | Class F |
Warranty
| Warranty | 3 on Motor |
Compliance & Certifications
| Certifications | UL & cUL Listed |
