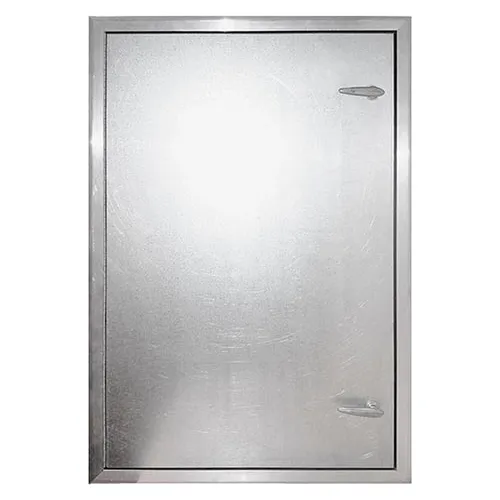

Walk Through Access Door - 30 x 48

Universal flush access door (stainless steel) for walls & ceilings. Designed for installation in all types of flush surfaces. This unit is good for exterior applications or areas where corrosion or moisture is a concern. 2 Latches. Stainless Steel Finish. 17-5/8"W x 17-5/8"H Outside Flange Dimensions. 16-1/4"W x 1-1/4"D x 16-1/4"H Return Flange Dimensions.

Universal flush access door (steel) for walls & ceilings. Designed for installation in all types of flush surfaces. The drawn flanged door panel has rounded corners for both safety & an architecturally pleasing appearance. The frame is drawn as one piece, which provides excellent strength. Fabricated from galvanized steel & coated with a white baked on polyester powder paint, this door will perform well in high corrosive & exterior applications. 1 Latch. White Finish. 8-1/4"W x 8-1/4"H Outside Flange Dimensions. 6-1/8"W x 1-5/16"D x 6-1/8"H Return Flange Dimensions.

Constructed of a 24 gauge galvanized steel double panel door and frame with mill finish for long lasting durability. 1/8" thick x 1/2"W closed cell neoprene gasketing between insulated door and frame assures tight seal without obstruction in air system. Frame includes 5/8" notched knock over tabs. Door panel filled with 2" fiberglass insulation compressed into 1" and includes aluminum continuous piano hinge. 24" W x 24" H outside flange dimensions. 22-3/4" W x 22-3/4" D x 5/8" H return flange dimensions. Color finish is Silver . Number of latches is 2 .

Surface Mounted Access Door - 24" x 24" This 24"W x 24"H access door is made of solid 16 gauge steel for long lasting duability and dependability. 25-1/4"W x 25-1/4"H frame. Rounded safety corners on door provides an architecturally pleasing appearance. Exposed continuous piano hinge allows the door panel to open to 175 degrees. Mounting holes in each corner of the frame allow for easy installation. Since there is no frame to extend into the wall or ceiling, it is ideal for access to odd size opening. White finish. 4 latches.

Surface Mounted Access Door - 12" x 12" This 12"W x 12"H access door is made of solid 16 gauge steel for long lasting duability and dependability. 13-1/4"W x 13-1/4"H frame. Rounded safety corners on door provides an architecturally pleasing appearance. Exposed continuous piano hinge allows the door panel to open to 175 degrees. Mounting holes in each corner of the frame allow for easy installation. Since there is no frame to extend into the wall or ceiling, it is ideal for access to odd size opening. White finish. 1 latch.
