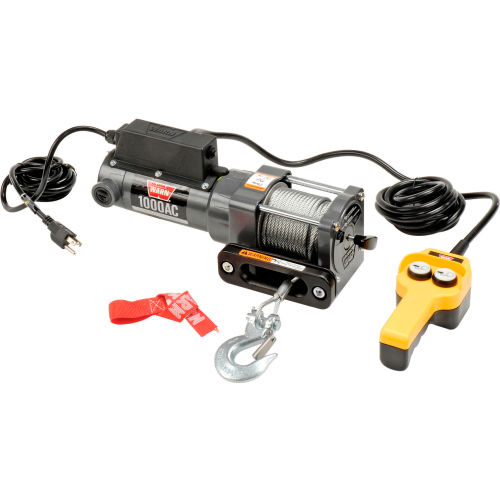

Warn® 1000AC 1000 Lb. Cap. 120V AC Powered Utility Winch 80010

Warn® 1000AC AC Powered Warn Winch

This Warn® Winch allows you to pull or drag anything, anywhere! Ideal for use wherever 120 Volt AC power is available, this utility winch delivers 1000 lbs. of pulling capacity. A long duty cycle and legendary Warn durability make this the tool you can rely on to get the job done.

Features include:
· Strong 1000 lb. pulling capacity
· Superior Duty Cycle
· 43'L of 3/16" wire rope
· Smooth and durable planetary geartrain
· Powerful permanent-magnet motor with serviceable brushes for long life
· Pull & Turn freespooling clutch
· Self-braking transmission
· 2" drum diameter
· 261:1 gear ratio
· Mounting Hole Pattern: 4-holes, 3.1" x 2.5"
· Sealed, pendant-style remote with 8' lead
· 6'L power cord
· 18-3/4"L x 8"W x 11"H; weighs 27 lbs.
1 Year Limited Warranty

Performance Specs
Load Lbs.	Current Amps	Speed Ft./Min.
0	.7	10.1
250	1.6	9.5
500	3.2	8.3
750	4.8	7.4
1000	6.5	6.6

Note: Above performance specs are based on first layer of drum

Performance By Layer
Layer	Load Lbs.
1st Layer	1000
2nd Layer	850
3rd Layer	745
4th Layer	660
