Leeson Motors Motor Washdown Motor-2HP, 208-220/460V, 1740RPM, TEFC, RIGID C, 1.15 SF, 84 Eff.

General Purpose, Capacitor Start-Capacitor Run Motor: 1.5HP, 1740 RPM, Drip-Proof (DP) Enclosure, 56H Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 13.4/6.7, Continuous duty, 1.15 Service Factor, Manual thermal protection, Efficiency: 81.5, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8. Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated ...

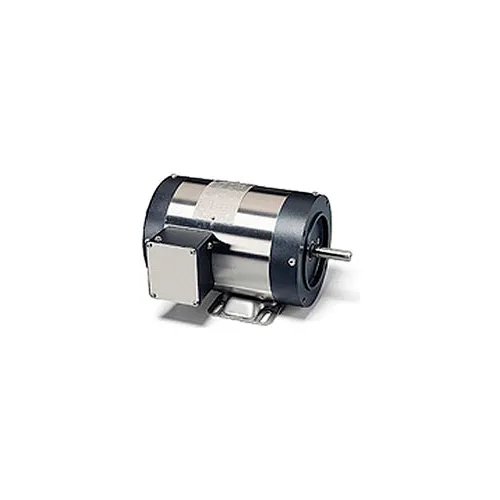

Baldor-Reliance Washdown Motor IDCSWDM3542, 3 Phase, 0.75 HP, 1740 RPM, 208-230/460 Volts, TENV, 56C FR Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down. Features Includes all the advantages of ...

Baldor-Reliance Motor, ... Features: All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire Four condensate drains in each endplate Enplate rabbets sealed and conduit box gasketed Lip seals Especially effective in highly corrosive environments where paint or other finishes do not hold up. Typical Applications: Food processing, packaging, outdoor and highly corrosive environments.

Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down. Features All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base Moisture resistant 200°C ...

Baldor-Reliance Motor, ... Features: Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatically applied epoxy finish Class F insulation Tropicalized Typical Applications: Food processing and other applications where motor is regularly exposed to high pressure wash down.
