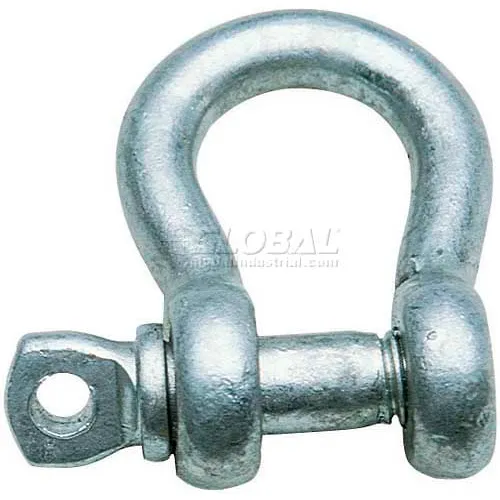

Elite Sales Galvanized Screw Pin Anchor Shackle - 5/16"
Our Screw Pin Anchor Shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor. Working load limit permanently shown on every shackle.
Elite Sales HG516SPAS 5/16" Galvanized Screw Pin Anchor Shackle - Pack of 25
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$63.95
7
7
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 1-1/4 in |
| Weight Capacity | 1500 lbs |
| Weight | 0.2 lbs |
| Pin Diameter | 3/8 in |
| Dimension F | 0.84" |
| Dimension C | 1.25 in |
| Inner Width | 13/16 mm |
| Dimension A | 5/16" |
| Material Diameter - Chain Size | 5/16 |
| Dimension B | 3/8" |
| Dimension D | 0.53" |
| Dimension E | 0.81" |
Product Details
| Body Material | Galvanized Steel |
| Color | Silver |
| Style | Galvanzied Screw Pin Anchor Shackle |
| Material | Galvanized Steel |
| Construction Type | Connectors & Links |
| Package Quantity | 25 |
| Manufacturers Part Number | HG516SPAS |
| Brand | Elite Sales |
Warranty
| Warranty | 30 Days for Material |
