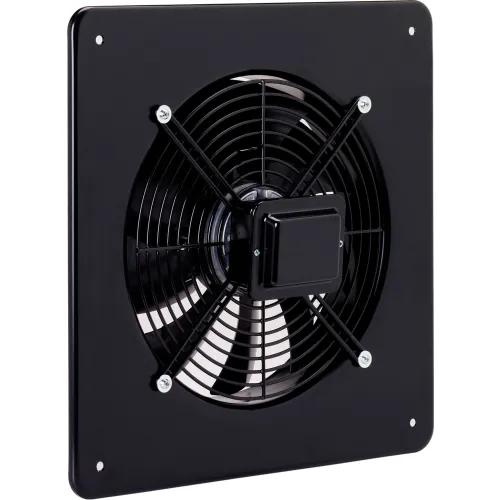

Fantech Fantech 10" Axial Fan FADE 10-4, 120V, 1 PH, 627 CFM
All FADE Series fans combine aerodynamically designed propeller blades and rotor motor into one expertly integrated unit. Fans feature a heavy gauge galvanized steel and powder coated finish casing. Fantech's FADE Series fans move a lot of air, yet are statically and dynamically balanced for vibration-free operation. The external rotor motorized propeller provides excellent heat dissipation, even at low RPM. Rated for continuous duty.
Features:
All FADE Series fans combine aerodynamically designed propeller blades and rotor motor into one expertly integrated unit. Fans feature a heavy gauge galvanized steel and powder coated finish casing. Fantech's FADE Series fans move a lot of air, yet are statically and dynamically balanced for vibration-free operation. The external rotor motorized propeller provides excellent heat dissipation, even at low RPM. Rated for continuous duty.
Features:
- 100% speed-controllable
- Shallow profile with no protruding motor
- All fans include motor side guards as standard
- Three-year warranty
- UL, cUL Listed and AMCA Certified
Weights & Dimensions
- Width 10-5/16 in
- Fan Diameter 10 in
- Length 10-5/16 in
- Height 14-9/16 in
- Weight 15 lbs
Product Details
- Mounting Location Wall
- Number of Speeds Variable
- Amperage 0.44 A
- For Use With FAT10, WC15
- Drive Type Direct Drive
- Material Galvanized Steel
- Peak Fan Power Input 47.8 BHP
- Operating Temperature Up To 158°F
- RPM High 1,634 rpm
- Voltage 120 V
- Description Axial Fan
- Speed Controllable Y
- Horsepower 1/16 HP
- Motor Type EBM
- CFM High 627 CFM
- Phase 1
- Watts 47.8 W
- Brand Fantech
- Hertz 60 Hz
- Manufacturers Part Number FADE 10-4
- Sones 7.9
- Color Family Black
Warranty
- Warranty 3 yr
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, cULus
