Features:
- Mixed flow impeller
- 100% speed controllable
- Can be installed in any position
- External rotor motor
- Galvanized steel housing
- Three-year warranty
- Certified by AMCA Air, AMCA Sound and cULus

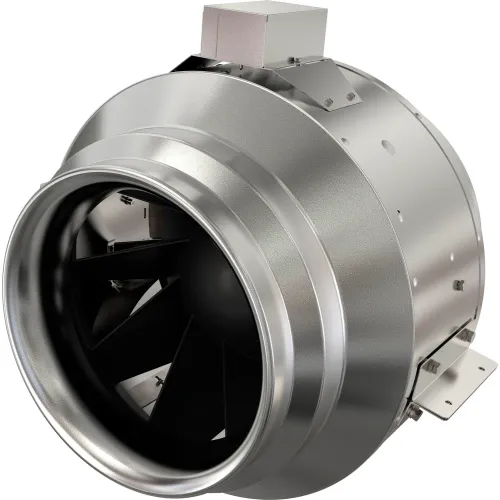

Fantech Inline Mixed Flow 20" Duct Fan FKD 20-230/460, 230/460V, 6236 CFM
Write a Review
|
Questions & Answers (0)
Product Description
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust. FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8" to 20". Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.
Features:
Features:
PRICE
$3,409.00
1
1
Ships in 20 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 27-1/4 in |
| Width | 28-1/8 in |
| Height | 27-1/4 in |
| Weight | 109 lbs |
| Duct Size | 20 in |
Product Details
| Number of Speeds | Variable |
| For Use With | RPE210 |
| Motor Type | Totally Enclosed External Rotor Motor |
| Wattage | 2443 W |
| Material | Galvanized Steel |
| Phase | 1 |
| Manufacturers Part Number | FKD 20 - 230/460 |
| Indoor/Outdoor | Indoor |
| Brand | Fantech |
| RPM | 1750 rpm |
| CFM | 6306 CFM |
| Color | Silver |
| Amperage | 4 A |
| Drive Type | Direct |
| Hertz | 60 Hz |
| Sones | 33 |
| Speed Controllable | Y |
| Voltage | 230 / 460 V |
| CFM High | 6306 CFM |
| Description | Inline Mixed Flow Duct Fan |
Warranty
| Warranty | 3 yr |
Compliance & Certifications
| Certifications | AMCA Air, AMCA Sound, cULus |
