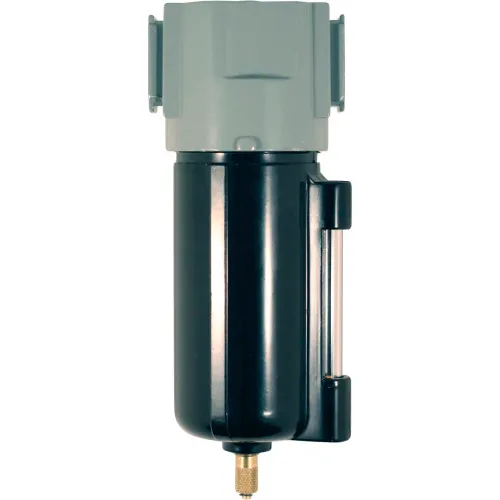

Milton 1018-6 Micro Filter Metal Bowl 1/4" NPT 150 PSI 40 Micron

1/2" NPT FRL trio combines the filter regulator and lubricator with modular connectors. This pre-assembled unit has polycarbonate bowls offer a 5 ounce capacity and includes a gauge. Maximum of 150 PSI and 48 SCFM.

3/8" NPT deluxe FR duo combines the filter and regulator with brass fittings. The filter has an automatic overnight drain and the regulator is the relieving type. This pre-assembled unit has polycarbonate bowls with metal bowl guards and includes a gauge. Offers a maximum pressure of 150 PSI and 75 SCFM. 40 micron filter element.

Features & Benefits Manual 1/8" NPT twist drain Long element life Low pressure drop Body - Steel, black E-coated Baffle - Aluminum Seals - Buna N Metal Bowl w/ Sight - Max pressure 250 psig Operating temperature range 30° to 160°F Internal Float Drain - Note: limits bowl temperature and pressure rating Operating pressure range 30 to 175 psig Operating temperature range 40° to 120°F Pipe Sizes - 1" Max Flow SCFM - 300 Bowl Capacity - 29 oz.

3/8" NPT Deluxe FRL trio is a filter regulator and lubricator all in one. The filter has an automatic overnight drain the regulator is the relieving type and the lubricator is drip style. This pre-assembled unit has metal bowls and includes a gauge. Offers a maximum of 150 PSI and 75 SCFM. 40 micron filter element.

This 1/2" NPT Milton micro filter is supplied with pre-assembled automatic overnight drain which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate pipe scale dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and ...
