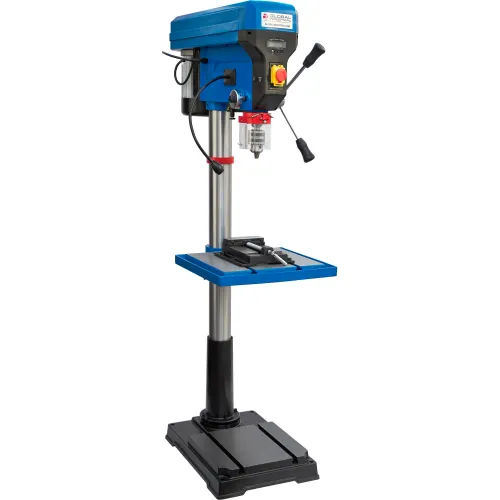

Global Industrial™ 20" Floor Standing Drill Press, 120V, 1-1/2 HP

Global Industrial™ 20" Floor Standing Drill Press, 120V, 1-1/2 HP

Item #: WB257274

Not Yet Rated

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial™ 20" Floor Standing Drill Press, 120V, 1-1/2 HP
  • HSS Annular Cutter, 9/16" D, For 2" Depth of Cut, 4 Flutes x 3/4" Sh D, 2 Shank Flats

    $45.95

  • Lavallee & Ide Aligning Reamer, Spiral Flute, 3/4" Dia. Cobalt

    $87.95

  • Triumph Twist Drill Style BP7 HSS Reduced Shank Drill Bright 3/8"

    $6.50

Price: $1,119.00

$186.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

✓ Variable speed for different materials & material thicknesses
✓ Tiltable worktop with T-slots for optional 6" vice
✓ Rack-and-pinion table adjustment with large crank handle

Bore holes in wood, metal, and plastic with the variable-speed Global Industrial™ 1.5-HP 20" Floor Standing Drill Press. It is outfitted with a large 5/8″ chuck to receive most drill bits, a generous working distance for easy use with materials of different thickness, and speeds from 180-2940rpm to ensure the proper drilling power to match the material being used. The 18.5 x 16.5″ worktop can tilt to properly position your material without interference with integral T-slots that allow you to use an optional 6″ vice to secure your material. Ideal for shops of all sizes the press has an 22.8 x 16.9″ base that stands on the floor for stability with pre-drilled mounting holes for permanent or semi-permanent installation for increased stability and security.

  • 1.5-HP, 120V AC, 13A motor
  • Chuck guard for user safety
  • Flexible work light ensures precision and increased safety
  • Made of cast iron and steel for improved vibration-suppression and stability
  • Assembly required


    Weights & Dimensions

    • Spindle Travel 4-3/4 in
    • Spindle Distance To Table (Max) 29 in
    • Width 19-11/16 in
    • Chuck Size 13/16 in
    • Table Size (L x W) 18-1/2 x 16-9/16 in
    • Column Diameter 3-5/8 in
    • Length 31-1/2
    • Base Size 22-13/16 x 16-13/16 in
    • Drilling Capacity 1-1/4 in
    • Height 67-3/4 in
    • Swing 20 in
    • Spindle Distance To Base 47-5/8 in
    • Weight 260 lbs

    Product Details

    • Horsepower 1.5 HP
    • Spindle Taper MT4
    • Motor Voltage 120 V
    • Phase 1
    • Type Floor Standing Drill Press
    • High Speed RPM 2940 rpm
    • Brand Global Industrial
    • Material Cast Iron, Steel
    • Manufacturers Part Number 257274
    • Motor Amps 12 A
    • Low Speed RPM 180 rpm
