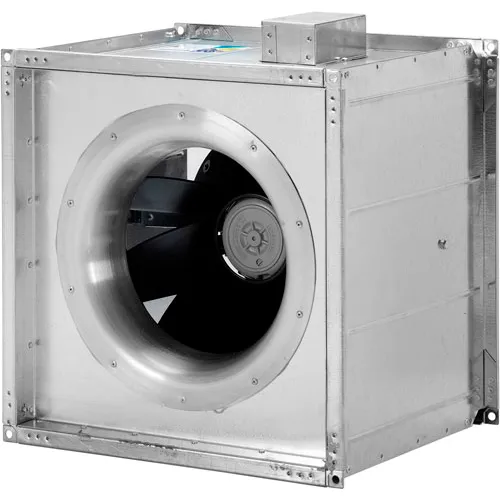

Fantech 20" Square Inline Mixed Flow Duct Fan FSD 20, 115V, 3225 CFM
The FSD Series is a mixed flow centrifugal type exhaust/supply fans for moderate size ventilation applications were specifically designed to provide the high flow of axial designs plus the higher pressure, non-overloading characteristics of backward curved impellers. Motor bearings are a permanently sealed, self-lubricating ball type. The square design provides a larger discharge area than tubular centrifugal or vane axial fans, so outlet velocities are reduced for quieter operation.
Features:
The FSD Series is a mixed flow centrifugal type exhaust/supply fans for moderate size ventilation applications were specifically designed to provide the high flow of axial designs plus the higher pressure, non-overloading characteristics of backward curved impellers. Motor bearings are a permanently sealed, self-lubricating ball type. The square design provides a larger discharge area than tubular centrifugal or vane axial fans, so outlet velocities are reduced for quieter operation.
Features:
- Lightweight square design provides a larger discharge area and quieter operation
- Mixed flow impeller design incorporates high flow with higher pressure, non-overloading characteristics and automatic reset thermal overload protection
- 100% speed controllable
- Airstream temperatures of up to 140° F
- UL Listed and AMCA Certified
- Three-year warranty
Product Details
- Number of Speeds Variable
- Amperage 6.40 A
- For Use With RPE10
- Drive Type Direct
- Material Galvanized Steel
- RPM High 1,563 rpm
- Voltage 115 V
- Description Square Inline Mixed Flow Duct Fan
- Speed Controllable Y
- CFM High 3424 CFM
- Phase 1
- Watts 714 W
- Brand Fantech
- Warranty 3 yr
- Hertz 60 Hz
- Manufacturers Part Number FSD 20
- Color Family Silver
- Sones 14.1
Weights & Dimensions
- Width 17-3/4 in
- Fan Diameter 20 in
- Length 19-3/4 in
- Height 19-3/4 in
- Weight 81 lbs
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, cULus
