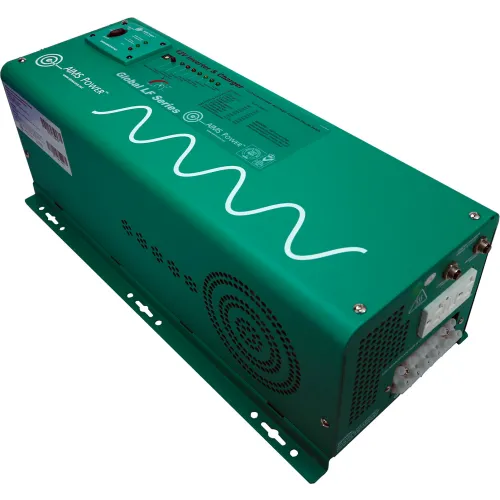

If needed, this inverter has the capability of producing 7500 watts of total surge power for 20 seconds, for start-up applications like refrigerators, computers, tools, motors, fans and microwaves.
This inverter boasts a 85 amp charger and automatic transfer switch. For use with shore power or generator power to recharge your batteries or as a back-up for your sump pump, medical equipment, appliances, tools and most anything up to 20 AC amps. 2500 watt continuous 7500 watt surge for 20 seconds 300% surge capability (don't use the surge mode often)
Features:
- AC direct connect terminal block
- GFCI outlet
- Marine coated and protected
- Multi stage smart charger 85 A
- LCD remote panel available
- Thermal and load based fan
- Low voltage recovery
- Power save mode
- Auto frequency
- 10msec typical transfer time
- Optional 25W power save mode
- 7 battery type settings for charger
- 1 year warranty and free tech support (no dip switches, optional battery temp sensor or auto gen start)
- Continuous output power: 2500 Watt
- Surge rating: 7500 Watt (20 seconds)
- Output waveform: pure sine/same as input (bypass mode)
- Output voltage: 100-110-120 VAC
- Nominal efficiency: >88% (peak)
- Line mode efficiency: >95%
- Output frequency: 60Hz +/- 0.3Hz
- Typical transfer time: 10ms (max)
- Terminal output breaker/ transfer load: 30 amps automatic THD: < 10% DC
- Nominal input voltage: 12.0 VDC
- Minimum start voltage: 10.0 VDC
- Low battery alarm: 10.5Vdc-11.0 VDc
- Low battery trip: 10.0Vdc-10.5 VDC
- High voltage alarm: 16.0 VDC
- Low battery voltage restart: 15.5 VDC
- Input breaker / charger breaker-30 amps
- Idle consumption: 55 watts
- Power saver mode idle consumption: <21.7 watts
- Output voltage: depends on battery type
- Charger rate: 85 A
- Unit size: L x W x H: 21 1/2"x 8 3/4"x 7 3/8"
- Shipping size: L x W x H: 23-1/2"x 13.0"x 12-1/2"
- Unit weight: 46 lbs
- Shipping weight: 50 lbs.
Output Specifications:
Input Specifications:
Charger Specifications:
Dimensions:
