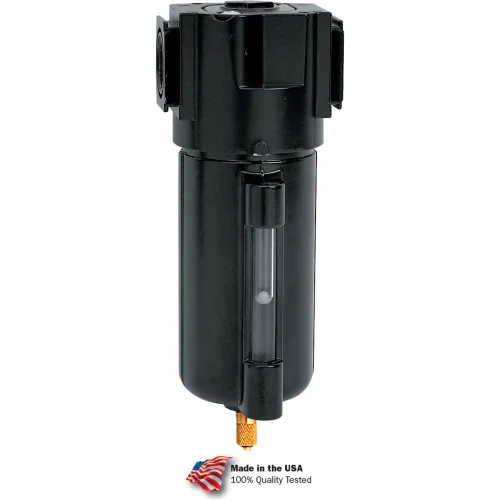

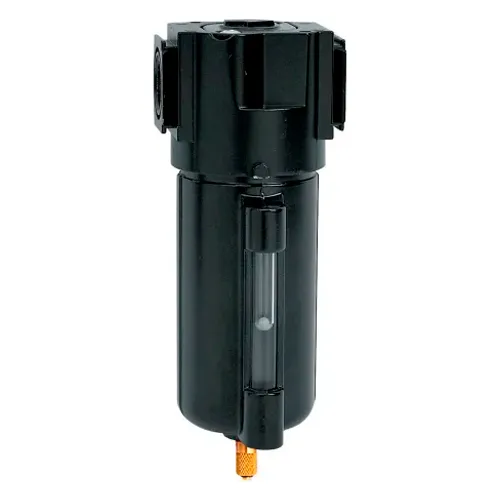

Arrow Tri-Star Particulate Filter F353w, Metal Bowl, 3/8" Npt, 250 Psi

This 1" NPT heavy duty micro filter is supplied with pre-assembled automatic overnight drain 3 stage baffle system and porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate pipe scale dirt and rust from compressed air systems. The corrosion resistant metal bowl has a capacity of 29 ounces and is protected by a safety metal bowl guard. Maximum of 250 PSI and 300 SCFM.

Replacement element kit for Arrow standard coalescing filters

Features & Benefits Manual 1/8" NPT twist drain Long element life Low pressure drop Body - Steel, black E-coated Baffle - Aluminum Seals - Buna N Metal Bowl w/ Sight - Max pressure 250 psig Operating temperature range 30° to 160°F Internal Float Drain - Note: limits bowl temperature and pressure rating Operating pressure range 30 to 175 psig Operating temperature range 40° to 120°F Pipe Sizes - 1" Max Flow SCFM - 300 Bowl Capacity - 29 oz.

This 3/4" NPT heavy duty coalescing filter metal bowl is designed for applications that require air free of oil and all foreign particles. This 10 ounce capacity metal bowl includes an automatic overnight drain for convenience. With a maximum pressure of 250 PSI this coalescing filter offers up to 60 SCFM. The .03 micron filtration and low pressure drop make this filter ideal for body shop spray painting food processing and instrumentation.

1/4" Intermediate coalescing filter, metal bowl with sight, auto drain, .03 micron, 30 SCFM, 250 PSI max
