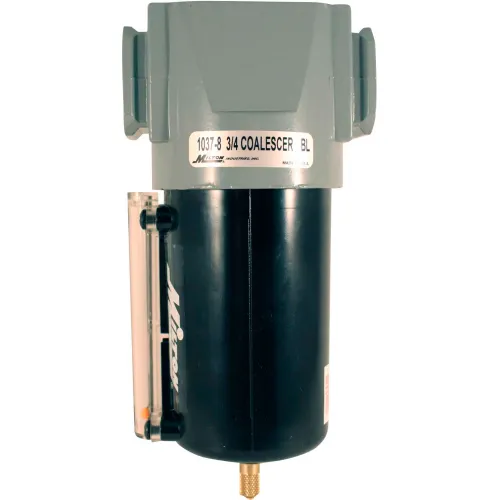

Milton 1037-8 Coalescing Filter Metal Bowl 3/4" NPT 250 PSI 0.03 Micron

This 1" NPT heavy duty micro filter is supplied with pre-assembled automatic overnight drain 3 stage baffle system and porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate pipe scale dirt and rust from compressed air systems. The corrosion resistant metal bowl has a capacity of 29 ounces and is protected by a safety metal bowl guard. Maximum of 250 PSI and 300 SCFM.

Mini in line disposable desiccant dryer removes all traces of dirt dust water vapor oil vapor and more. Replace unit when desiccant changes color from blue to pink. Can be installed in either direction. Ideal for paint spray guns and applications requiring clean supply of air.

Features & Benefits Manual 1/8" NPT twist drain Long element life Low pressure drop Body - Steel, black E-coated Baffle - Aluminum Seals - Buna N Metal Bowl w/ Sight - Max pressure 250 psig Operating temperature range 30° to 160°F Internal Float Drain - Note: limits bowl temperature and pressure rating Operating pressure range 30 to 175 psig Operating temperature range 40° to 120°F Pipe Sizes - 1" Max Flow SCFM - 300 Bowl Capacity - 29 oz.

This 3" ID x 4 3/8" OD polyester cloth filter element is high quality and highly efficient. The cloth filters can be cleaned in a mild soapy solution and blown dry. 2 5/16" total height.

This 3/4" NPT Milton micro filter is supplied with pre-assembled automatic overnight drain which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows fewer pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate pipe scale dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and ...
