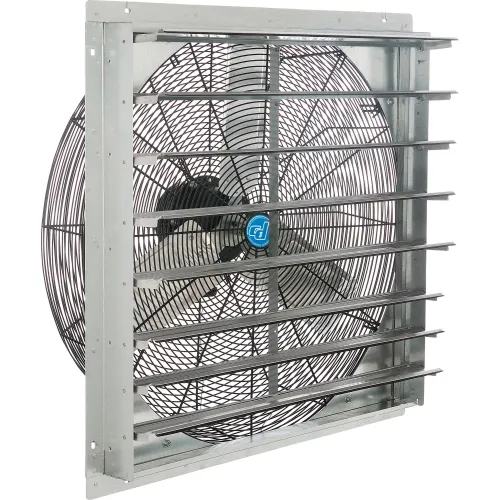

EXHAUST FAN
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed.
1 year limited warranty. Horsepower rating based upon maximum speed/load. Horsepower rating based upon maximum speed/load.
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed.
1 year limited warranty. Horsepower rating based upon maximum speed/load. Horsepower rating based upon maximum speed/load.
- AMPS 2.90
- APPROVALS OR CERTIFICATIONS UL, cUL listed, OSHA & UL507 Compliant
- ASSEMBLY Unassembled
- BRAND CD
- Base Model Number 294498
- CFM HIGH 8,000
- COLOR Gray
- CONSTRUCTION Steel / Aluminum
- DECIBELS (DBA) 76
- DEPTH INCHES 6-1/2
- DRIVE TYPE Direct
- FAN DIAMETER INCHES 30
- HEIGHT INCHES 33-1/2
- HORSEPOWER 1/4
- LIMITED WARRANTY YEARS 1
- MAX. TEMPERATURE 104° F
- MODEL 294498
- MOUNT TYPE Inside Wall
- POWER CORD LENGTH FEET Not Included
- POWER CORD TYPE Hard Wire
- ROUGH OPENING INCHES 30-1/2
- RPM HIGH 1,100
- SPEEDS 1
- VOLTAGE 120
- WATTS 275
- WEIGHT LBS 54
- WIDTH INCHES 33-1/2
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: JEFF
Date: July 06, 2020
-
Reviewer: david
Date: June 03, 2020
Your review:
the fan works well,as expected. I would reduce the 31” square rough opening that is redommended by 1/2” because the attachment holes are very close to the edge of the framing. -
Reviewer: ESTELLA
Date: May 06, 2020
Your review:
it was used for our paint storage room. Works perfect. Thank you. -
Reviewer: JON
Date: March 02, 2020
Your review:
It is only 68 Degrees the first day they went in and they only run for 2 minutes before they shut off. I bought 3 warehouse exhaust fans to cool our warehouse this summer(this is what they are designed for) and all 3 will not run more than 2 minutes before they overheat and turn off. If it is below 70 degrees now how will they even work when it is 100 degrees out. If these are designed to go in the peaks of a warehouse, on a 100 degree day it is 140 plus at the roofline so what are these even for? -
Reviewer: Anonymous
Date: June 03, 2019
Your review:
Quality fan for the price. -
Reviewer: Anonymous
Date: June 28, 2018
Your review:
Nice unit, moves lots of hot air in my 1000 sq ft. garage. Its more noisy than I had hoped but its moving air. Good unit for price. -
Reviewer: Anonymous
Date: March 26, 2018
Your review:
Works great. Easily installed and have had no problems with it. -
Reviewer: Anonymous
Date: March 23, 2018
Your review:
The fan was easy to install. We've put in several of them and there have been no issues. -
Reviewer: Anonymous
Date: August 01, 2017
Your review:
Could have had better instructions, but the quality of the fan and the shutter seemed very good. It is quiet and moves lots of air. -
Reviewer: Anonymous
Date: September 08, 2016
Your review:
Works very well for intended purpose of venting heat from equipment to the outdoors.
Product Q & A
There are 4 questions and 4 answers for this product.
-
With this single speed fan, would a Variable Fan Speed Controller be applicable, or is it simply On or Off?
Question Asked By: Mike, August 29, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello Mike, this unit is designed for single speed only. However, we do offer model 294498A https://www.globalindustrial.com/p/hvac/exhaust-fans/exhaust-and-supply/tpi-exhaust-fan-30-in-with-shutter-2-speed that is available in a 2-speed operation. You can also contact our sales team at 1.888.978.7759 for a list of models compatible with a variable speed switch. Thank you for your question.
-
-
I have a 30 hP compressor and dryer in a room about 4500 Cubic feet in size. It is about 15 degrees above ambient. I have a 32x36 opening (will remove a window) for a fan in the block wall. I can also use the other window of the same size across the room for makeup air. Will this fan do the trick?
Question Asked By: Philip, July 25, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Philip, This fan is meant for inside wall installation. This fan should not be operated outside. For proper exhaust operation, a window, door, or louver should be opened on the opposite side of the area to be ventilated. Thank you for your interest in our product.
-
-
Will the shutters of item #294498 close when the fan is off?
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
Yes, these are gravity shutters that will close when the fan shuts off.
-
-
We're going to be building a 24' x 28' stand alone garage (approx. 20' to the center peak) with an open walk-up loft. What size fan do we need to keep it reasonably cool in the summer?
Question Asked By: October 10, 2012
Answer This Question
Question Answered By:
-
Product Expert, October 10, 2012
Model number 294497, CD 24" Exhaust Fan Shutter Mounted, is highly recommended for the stand alone garage. The CFM required to ventilate a building with dimensions of 24 ft. L x 28 ft. W x 20 ft. H with 4 minutes between air changes is 3,360 CFM and 294497 would be perfect.
-
Accessories
Warranty
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
Continental Dynamics® 30" Single Speed Direct Drive Exhaust Fan With Shutter, 1/4 HP
$362.95
