- 21.653" working width.
- 5.9" cylinder stroke.
- Industrial-grade hydraulic parts ensure smooth, dependable use for years.
- Cylinder can move left and right within the frame, depending on orientation of the job.
- You have the option to work the HSP-30A manually, if you need finer control.
- Comes standard with a set of V-blocks.
- Rigid, fully-welded steel main frame eliminates flexing at full force to deliver accurate results.
- Typically in stock for fast deliveries.
- Baileigh covers this H-frame press with a 1-year parts warranty and lifetime technical support by phone.

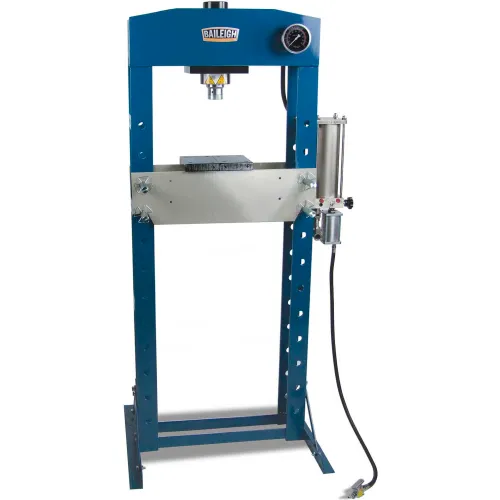

Baileigh Industrial 30 Ton Air/Hand Operated H-Frame Press, 6" Stoke, CE Approved
Write a Review
|
Questions & Answers (0)
Product Description
The HSP-30A pneumatic shop press offers the same high-value features and steel construction of our HSP-20A—but with 30 tons of force!
PRICE
$2,665.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight Capacity | 30 |
| Ram Diameter | 2.375" |
| Max Lift of Beam | 2.5 in |
| Piston Stroke | 5.9 in |
| Vertical Table Travel | 2" - 44.5" |
| Max Spindle Distance to Table | Min. 5.94 - Max. 40.59 in |
| Work Table Size | 21.65" |
Product Details
| Type | Hydraulic |
| Country of Origin | Import |
| Manufacturers Part Number | BA9-1004816 |
| Brand | Baileigh Industrial |
| Max Pressure | 8485 psi |
