IGUS PRT-01-200 300mm Dia. Slewing Ring Bearing - 22,480 lbs Max Axial Static

IGUS PRT-01-200 300mm Dia. Slewing Ring Bearing - 22,480 lbs Max Axial Static

Item #: WBB434837

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$657.15 up to 32% OFF

Price: $449.95

Save $22.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

300mm Dia. Slewing Ring Bearing - 22,480 lbs Max Axial Static

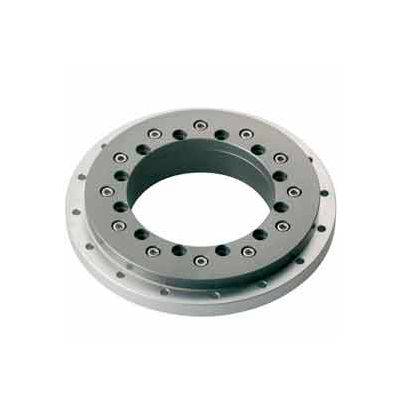

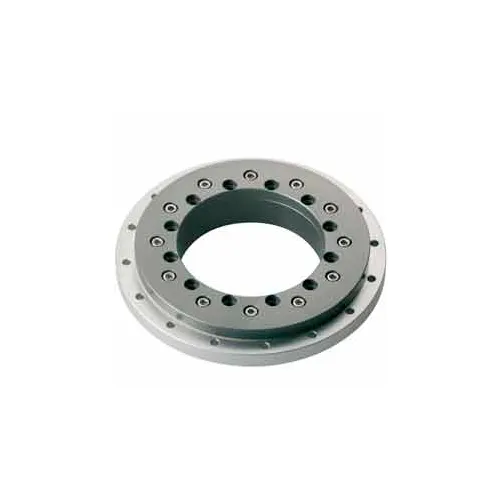

iglide® PRT is a slewing ring bearing with the proven advantage of igus® plastic bearings. The iglide® J sliding elements are completely maintenance-free and lubrication-free. All the housing components are made of aluminum (except style 02, which has iglide® J4 head rings), and all the parallel surfaces of iglide® J sliding elements are hard anodized. All the fixing screws are made of stainless steel. The PRT slewing rings are available on request in stainless steel.

  • BRAND igus
  • DIMENSION B 7
  • DIMENSION R1 137
  • DIMENSION R2 124
  • MANUFACTURERS PART NUMBER PRT-01-200
  • DIMENSION K2 --
  • K1 SCREW (DIN912) DIN 912 M5
  • MANUFACTURER igus, Inc.
  • DIMENSION D 300mm
  • DIMENSION T2 16 x 22.5°
  • DIMENSION d2 274
  • DIMENSION D1 215
  • DIMENSION h 15
  • COLOR Metal/Yellow
  • DIMENSION d1 215
  • MAX RADIAL STATIC 7,868 lbs.
  • DIMENSION T1 12 x 30°
  • MAX RADIAL DYNAMIC 2,248 lbs.
  • DIMENSION a 23
  • DIMENSION H 38
  • MAX AXIAL STATIC 22,480 lbs.
  • DIMENSION S2 7
  • MAX AXIAL DYNAMIC 6,744 lbs.
  • DIMENSION S1 M6
