80/20 3389 Single Tab End Fastener

The butt fastener assembly is comprised of a bolt and two cams. The butt fastener connects profiles end-to-end and provides a clean, flush connection, especially convenient where space restrictions apply. The butt fastener can also be used to connect shorter bars together where logistics or space makes it difficult to maneuver longer profiles. This connection method requires a counterbore machining service on each profile. TIP: Butt Fastener Machining will need to be added to the profile when ordering.

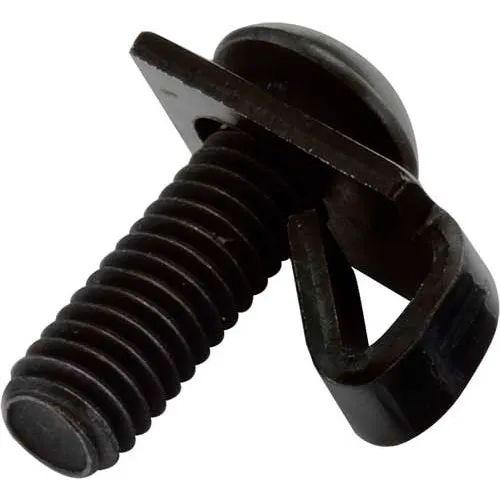

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3093 Double Anchor Fastener, Long Assembly Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Profile must have T-slots opposite each other Short assemblies mount across the 1.0" dimension for 10 Series and 1.5" dimension for 15 Series Long assemblies mount across the 2.0" dimension for 10 Series and 3.0" dimension for 15 Series

80/20 3362 Anchor Fastener Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Ships pre-assembled, saving you time

The wire mesh fastener is typically used with Quick Frame profiles to secure .500" x .500" mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws.
