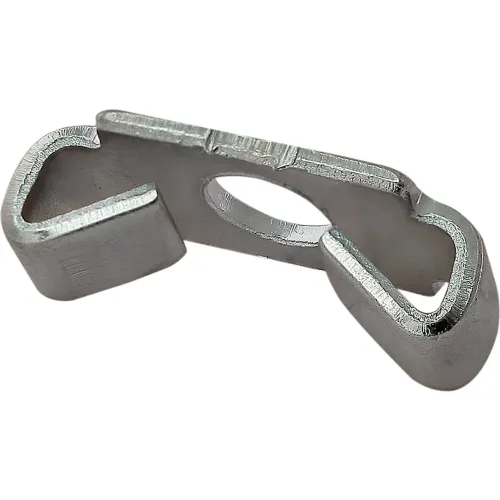

80/20® 25 Series End Fastener w/o Screw, Bright

The butt fastener assembly is comprised of a bolt and two cams. The butt fastener connects profiles end-to-end and provides a clean, flush connection, especially convenient where space restrictions apply. The butt fastener can also be used to connect shorter bars together where logistics or space makes it difficult to maneuver longer profiles. This connection method requires a counterbore machining service on each profile. TIP: Butt Fastener Machining will need to be added to the profile when ordering.

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3392 Anchor Fastener Anchor Fastener.

80/20 3389 Single Tab End Fastener Features: Provides a clean, hidden method of connecting closed-sided and quarter round profiles at 90° without the use of joining plates Winged tab of clip prevents mating profile from rotating The mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

80/20 3362 Anchor Fastener Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Ships pre-assembled, saving you time
