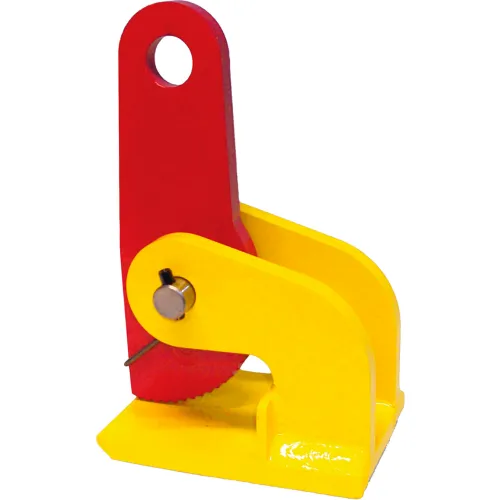

Terrier 4 FHX-V Horizontal Plate Lifting Clamp, 4400 lb. Capacity, 2-3/8"Jaw

For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions. Features: With articulated lifting shackle for universal lifting flexibility at various angles The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below Standard with 2 pivots for extra powerful clamping force Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force ...

For horizontal lifting, transportation and stacking of steel (H) beams, profiles and structures Features: Special design makes it possible to lift steel (H) beams on the flange as well as on the upper ends of the beam Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered Clamp is locked in closed as well as open position Lightweight design for easy handling Tough quality heavy duty welded shell body 2 TOBK with inch jaw opening & lbs Working Load Limit

For vertical lifting, transporting and turning of all steel plates and structures from all positions Features: Min . WLL is 10% of max . WLL note: the plate surface of the material must have a hardness level of max. HrC 37/345 Hb With articulated lifting shackle for universal lifting flexibility at various angles The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below Longer plates can be lifted without the ...

Terrier 2 TNMH Non-Marking Horizontal Lifting Clamp is designed for the safe horizontal lifting and transport of plates and structures without scratching, denting, or damaging finished surfaces. Ideal for stainless steel, aluminum, painted materials, composites, glass, and plastics, it features protective jaw pads, a durable welded body, lightweight construction, and a 4,400 lb lifting capacity per pair when used as intended.

For horizontal lifting and transporting of sheets that will bend or deflect when being lifted. Terrier TDH lifting clamps must always be used in pairs (or multiple pairs). Features: Compact design and high lifting capacity Lightweight design for easy handling Tough quality heavy duty welded body 2 TDH Horizontal Plate Lifting Clamp with 0-1.37 inch jaw opening & 2200 lbs Working Load Limit
