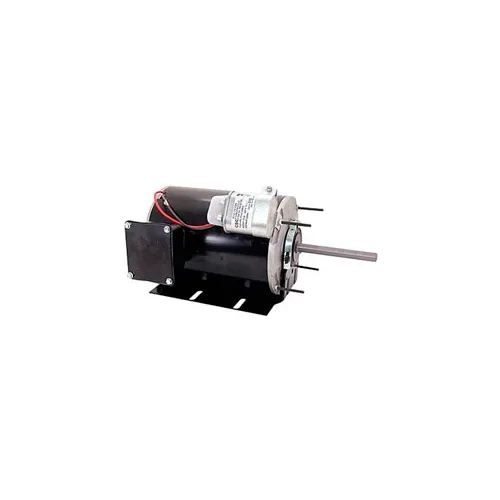

Century FB1076V1, 5-5/8" Outdoor Ball Fan Motor 208-230/460 Volts 1075 RPM

Century 5 5/8" Split Capacitor Condenser Fan Motor - 208-230 Volts 1120 RPM Permanent Split Capacitor 48Y Frame Stud / Belly Band Mounting Automatic Overload 60 HZ Single Phase

Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.

Energy efficient Different capacitor / Speed combinations Designed for 370V capacitor (not furnished) Extended thru bolts Class B insulation Continuous duty, air over Mounts by belly band, thru bolts or shell holes Rheem mounting holes in shell Permanent Split Capacitor Ball Bearings 48 Frame 60 HZ Automatic Overload Totally Enclosed Single Phase 60ºC ambient

Century, Transformer Cooling Fan Motor, Permanent Split Capacitor, 1/3 hp, 1140 rpm, 2 speed, 208-230v, TEAO, 1.4/1.7 amp, Reversible, Ball/Ball bearings

70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation
