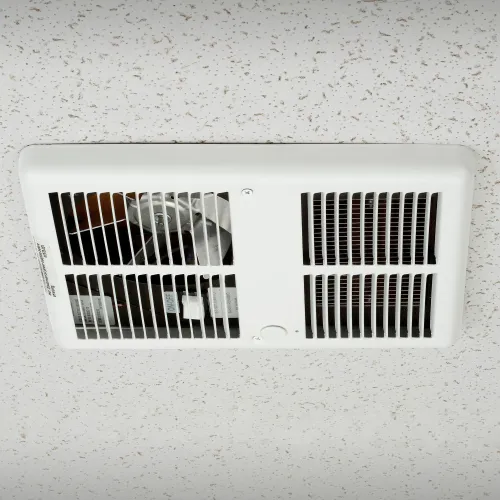

TPI Fan Forced Ceiling Heater E3035DWBW - 1500/750W 120V

4800 Watt Heater 208V Heavy-duty ceiling heaters have a white powder coated 18 gauge steel grill. These commercial heaters feature a steel block fin element and an automatic reset thermal limit that de-energizes heaters if over-heating occurs. The fan purge circuit requires 4-wire supply when a Remote Wall Thermostat is used. Vane axial fan blade with 900 RPM single phase motor provides 200 CFM. Ceiling heaters include an easy-to-use disconnect switch. Ceiling heaters measure 14-3/16"W x 4D x 19-15/16"H approx. Grill measures 15-3/8"W x 20-1/8"H. 1 Year Limited Warranty.

FAN FORCED CABINET UNIT HEATERS Cabinet unit heaters are ideal for commercial and institutional applications including stores, schools, offices, churches and more. Cabinet heaters can be wall or ceiling mounted on semi-recessed or fully recessed surfaces. Unit heaters can be rotated during installation to achieve up flow or down flow configurations. Grill section can be field reversed to change intake or output air direction. These electric heaters are made using 18 gauge steel housing with a beige powder coat finish. Fan forced heaters are powered using 1-speed shaded pole, permanently ...

TPI Fan Forced Portable Heater HF686TC - 4200/5600W 208/240V 1 Phase These portable heaters are great for area heating, spot heating and freeze protection for small areas up to 500 sq. ft. Operates on 240 or 208V. Finned steel tubular heating element for high efficiency heating. Swivel mounting bracket allows installation to walls, floors and ceilings. Temperature thermostat control with 35-85°F range. Provides a 10 air throw with 262 CFM heating. These electric heaters feature internal manual reset thermal cut-out and 6'L power cord with molded plug. 30 Amp plug NEMA #6-30P. Plug ...

This Horizontal Discharge Suspended Unit Heater is ideal for dirty, dusty environments and for high altitude applications up to 13,000 ft. Made using 18 gauge steel cabinet with powder coated finish. Control compartment includes a hinged and latched access door for easy wiring installation and maintenance. Circular copper clad steel heating element has continuously brazed steel fins formed to match the air delivery pattern of the fan blade. Fan assembly is enclosed by a heavy gauge, closed space with chrome plated wire guards. Louvers are individually adjustable for direction control of ...

DOWNFLOW UNIT HEATERS 50,000 Watt Heater 480V Heavy-duty, down flow heaters have a 16 gauge steel cabinet with an epoxy powder coat finish. These ceiling heaters feature a corrosion resistant element with steel sheath and steel spiral fins. Downflow heaters provide overheat protection with manual reset limit controls that de-energize when necessary. The control compartment has a hinged and latched access door for wiring, maintenance and installation. Heaters include OSHA safety wire guards to protect fan blades. Heaters have axial flow fan blade that provides a maximum of 1570 RPM. ...
