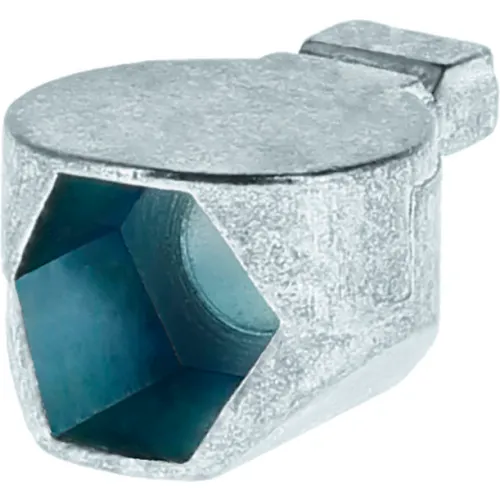

80/20® 20 Series Universal Connector, Die-Cast-Zinc, Slot 5, Bright

Features: Internal fastener that requires no machining Compatible with 15 and 40 Series profiles Infinite positioning along the T-Slot profile Two ways to install: Slide into the end of profile or install on captivated profiles with Roll-in T-nut Left-handed barrel thread to prevent loosening during installation Holding force exceeding 410 lbs and torsional strength over 372in-lbs Install barrel thread with 6mm ball end power bit (PN 65-6092). Use 5mm ball end hex wrench for screw (PN 65-6098)

The single holder is zinc die-cast and provides a quick and simple method to secure panels. The pads on the holders increase the strength and help to protect the panel. The single panel holder is frequently used in conjunction with a dual panel holder to form a frameless plastic panel corner. The single panel holder is comprised of two pieces and the hardware to connect them.

The 90 degree straight base connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of hardware. It is convenient for projects that will be attached or mounted at a 90 degree angle to any flat surface or T-slot profile and provides a clean, flush connection. The 90 degree straight base connector connects profiles quickly and easily using only a soft-faced mallet to form light-duty yet sturdy builds.

The 6 way - junction connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of additional hardware. It provides flush connections of up to six Quick Frame profiles, forming 90 degree or 180 degree connections. The 6 way - junction connector is commonly used when transitioning between standard and flanged profiles and uses only a soft-faced mallet to form light-duty yet sturdy builds. It requires no additional hardware and no machining services.

The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile's T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
