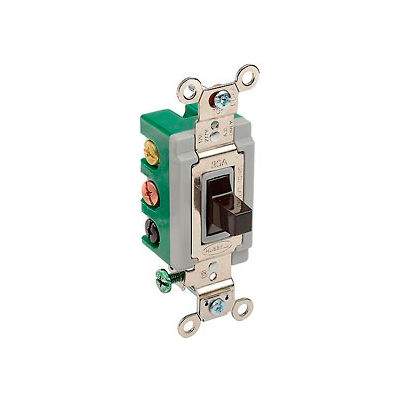

Bryant 3025BRN Toggle Switch, Double Pole, Double Throw, 30A, 120/277V AC, Brown

Bryant 3025BRN Toggle Switch, Double Pole, Double Throw, 30A, 120/277V AC, Brown

Item #: WBB211352

(13)

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $73.95

Save $3.70 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bryant 4925W Toggle Switch, Double Pole, Double Throw, 20A, 120/277V AC, White

Bryant 4925W Toggle Switch, Double Pole, Double Throw, 20A, 120/277V AC, White

Bryant 4901RKL Barrel Key Switch, Single Pole, 20A, 120/277V AC, Rotary Locking

Bryant 4901RKL Barrel Key Switch, Single Pole, 20A, 120/277V AC, Rotary Locking

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Little Giant® Safety Aluminum Step Ladder - 3 Step - 10310BA

Little Giant® Safety Aluminum Step Ladder - 3 Step - 10310BA

Bobrick® ClassicSeries™ Vandal Resistant Double Tissue Dispenser - B265

Bobrick® ClassicSeries™ Vandal Resistant Double Tissue Dispenser - B265

Classic Coffee Concepts SSU50 - Coffee Percolator / Urn, 50-Cup, Stainless Steel, 120V

Classic Coffee Concepts SSU50 - Coffee Percolator / Urn, 50-Cup, Stainless Steel, 120V

Global Industrial™ Workbench Top, Phenolic Resin Safety Edge, 72"W x 36"D x 1" Thick

Global Industrial™ Workbench Top, Phenolic Resin Safety Edge, 72"W x 36"D x 1" Thick

Bircher Reglomat ES-Tape Yellow/Black Awareness Tape (108 Foot Roll )

Bircher Reglomat ES-Tape Yellow/Black Awareness Tape (108 Foot Roll )

Leviton OSC05-M0W Ceiling Mount Occupancy Sensor, Multi-Technology, Self-Adjusting, White

Leviton OSC05-M0W Ceiling Mount Occupancy Sensor, Multi-Technology, Self-Adjusting, White

Special Purpose AC, Industrial Switches

Construction:
  • Base Material: Thermoset
  • Face Material: Thermoset, Color coded by voltage
  • Toggle/Actuator Material: Nylon
  • Terminals: High Performance Copper Alloy
  • Mounting Yoke: Brass and Nickel Plated Steel
  • Contacts: Silver Cadmium Oxide
  • Movable Contact Arm: High Performance Copper Alloy
  • Rocker: Thermoplastic Elastomer
  • Ground Terminal: Brass and Nickel Plated Steel
  • Terminal Screws: Brass
  • Ground Screw: Brass (green)
  • Auto Ground Clip: Stainless Steel
Technical Specs:
  • Dielectric Voltage: Withstands 1500V Minimum
  • Overload: Minimum 48 times rated current for 100 cycles
  • Temp. Rise: 30 deg C maximum at rated current
  • Max Continuous Current: 30A
  • Flammibility: UL 94 V2
  • Operating Temperature: Maximum continuous 75 deg C- Minimum -40 dec C (w/o impact)
Certifications:
  • Standards: Complies with UL 20 and NEMA WD-1.
  • UL Certification: UL Listed, File E1464, Guide #WMUZ. CSA approved.

Weights & Dimensions

  • Terminal Gauge Min 14 AWG ga
  • Terminal Gauge Max 10 AWG ga

Product Details

  • Brand Bryant
  • Voltage 120 / 277V AC V
  • Manufacturers Part Number 3025BRN
  • Amperage 30 A
  • Color Family Brown
  • Wiring Syle Back & Side Wired
  • Actuator Standard
  • Contact Type Double Pole, Double Throw

Compliance & Certifications

  • Certifications CSA Approved
Customer Review

5.0

  • 5 Star

    10
  • 4 Star

    3
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: PETER

    Date: February 18, 2021

    Excellent construction
    Your review:
    Just the right item I required for switching my pumping system between standby computer control and standard pressure switch operation
  • Reviewer: MANHAR

    Date: February 12, 2021

    Keep it up
    Your review:
    Best price and delivery date
  • Reviewer: MARK

    Date: January 13, 2021

    Good, solid switch.
    Your review:
    Using this to select between two 220V irrigation pumps. Just the ticket for my needs.
  • Reviewer: AZBluewhale

    Date: July 09, 2020

    Just what was needed.
    Your review:
    Switch is just what I needed to split line voltage between two 220v loads.
  • Reviewer: Anonymous

    Date: May 01, 2017

    Does the job
    Your review:
    I use this switch to toggle power between an electric heater or an air conditioner. After I wired everything, I had it inspected buy the local Electrical Safety Authority, who approved the use of this switch. One thing not mentioned in the product description - it has an OFF position, so it is really a 3-way switch.
  • Reviewer: Anonymous

    Date: January 19, 2016

    Nice switch
    Your review:
    This is a quality, difficult to find device. As I do with most things I over designed its application but it is perfect for my needs.
  • Reviewer: Anonymous

    Date: November 09, 2015

    owner of Burks' electrical & lighting.
    Your review:
    great switch.
  • Reviewer: Anonymous

    Date: June 18, 2015

    great
    Your review:
    Quick service---fast delivery
  • Reviewer: Anonymous

    Date: June 10, 2015

    Dryer switch
    Your review:
    Mom was having trouble carrying clothes from downstairs to upstairs and we do not live in town. Decided to put a small washer dryer upstairs so she could do laundry when I am not there and keep the larger washer & dryer downstairs so I can use it when visiting. The Power panel was maxed out, so could not add a breaker. The 240V breaker for the old washer dryer could only handle one dryer at a time. This switch allows me to supply 240 Volts to the washer dry upstairs separately from the dryer down stairs.
  • Reviewer: Anonymous

    Date: March 17, 2014

    Owner
    Your review:
    I am happy with the price and quality of the product. I will certainly purchase from you again. Thank you. Walt Serafin ...
