Canarm

Model # :WBB3192125

MPN #: ALX165UBT10150

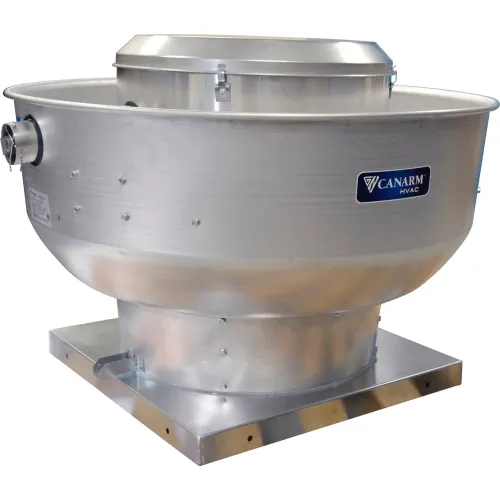

Canarm® ALX 16-1/2" Roof Exhauster Belt Drive Upblast, 3067 CFM, 1 HP, 115/230V

Product Description
Ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.

Features:
  • Spun aluminum housing will not rust, chip or peel
  • Aluminum backward inclined wheel is non-overloading
  • Belt drive
  • Units up to 24" can be wall mounted
  • Quick release latches for easy motor access


PRICE
$1,639.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height31-1/8 in
Weight210 lbs
Fan Diameter16-1/2 in
Base Dim.24-3/4 in²
Base Length24-3/4 in

Product Details

RPM1608 rpm
CFM3067 CFM
Horsepower1-1/2 HP
ColorGray
Number of Speeds1
Drive TypeBelt Drive
Sones26
Operating Temperature300° F
Speed ControllableY
Motor TypeOpen Drip Proof
Voltage115/230 V
CFM High3067 CFM
MaterialAluminum
Phase1
DescriptionBelt Drive Spun Alum Exhausters
Manufacturers Part NumberALX165UBT10150
BrandCanarm

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsUL705
