Model # :WBM1788050

MPN #: GM400TZ

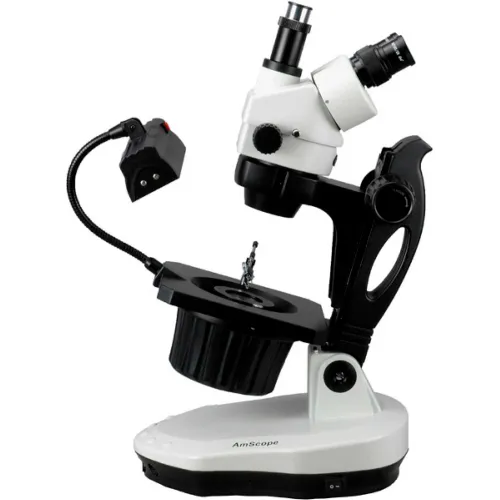

AmScope GM400TZ 3.5X-90X Advanced Jewel Gem Stereo Zoom Microscope

Product Description
This high quality microscope is designed for professional jewelers and gemologists. It includes a 3.5X-90X super widefield zoom stereo microscope head, 3D jewelry/gem clamp (tweezers), rotatable round stage with darkfield iris condenser and professional GEM stand. It offers 8" (200mm) working distance, 2-1/2" (65mm) super wide field of view and 26:1 large zoom magnification range. The microscope is illuminated with a 30W darkfield halogen light built in to the base and a 7W gooseneck rectangular fluorescent incident light box, providing rich spectrum, high-temperature color and close-to-daylight illumination. The incident light box shines light down onto objects, used to observe the surface details and fine structures of jewels or gemstones. The transmitted light through the darkfield condenser is designed for the examination of the inside quality of diamonds. This microscope is manufactured under the strict guidelines established under ISO 9001:2000 Standards.

Features:
  • A high quality professional 3.5X-90X trinocular jewelry/gem microscope with rotatable darkfield stage
  • A right microscope for distinguishing genuine & imitation gems and judging production origin
  • Comfortable Ergonomic design
  • High resolution sharp images with both bright and dark field illumination
  • Large rotatable round stage with built-in darkfield condenser, 3D gem clamp and graduations
  • Adjustable stand for easy and comfortable observation
  • Possible to measure gem angles
  • Advanced halogen system providing rich spectrum, high-temperature color, and close-to-daylight illumination
  • Flexible gooseneck-supported rectangular incident (top) fluorescent lamp
  • Bright halogen bottom light with dimmer for best darkfield illumination
  • Built-in darkfield condenser with iris
  • 3D flexible gem clamp
  • 45 degree inclined 360 degree rotatable trinocular head
  • Trinocular port for adding photo or video capability
  • Large zoom magnification range
  • High resolution optics with great flatness and contrast
  • Sharp stereo erect images over a wide field view
  • Crystal clear original true color images
  • Eye tube with adjustable diopter
  • Accurate alignment ensuring a fatigue-free viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included
  • Manufactured under restrict ISO 9001 quality control system
  • Five year manufacturer warranty
Specifications:
  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepiece: 30mm widefield WF10X/20
  • Barlow Lens: 0.5X and 2.0X
  • Objective: 0.7-4.5X
  • Zoom Range: 26:1
  • Field of View: 2-1/2" (65mm)
  • Working Distance: 8" (200mm)
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55mm-75mm)
  • Stand: gemology stand, inclinable up to 38 degrees
  • Iris Diaphragm: 2 - 41mm
  • Focal Range: 4-3/8" (110mm)
  • Stereo Angle: 12.4 degree
  • Diopter Adjustment: +/-5dp
  • Top Illumination: 7W fluorescent
  • Bottom Illumination: 6V/30W halogen
  • Power Supply: 100-240VAC 50/60Hz
  • Accessories: dust cover, eye-guards and clips
PRICE
$2,499.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Eyepiece30mm

Product Details

TypeStereo Microscope
Head TypeTrinocular
IrisWith Iris
Number of Light Bulbs2 lbs
ColorWhite
Power Supply110V/220V
Eyepiece Magnification10X
Field ViewSuper Widefield
Light SourceHalogen, Fluorescent
MaterialMetal
DescriptionAdvanced Jewel Gem Stereo Zoom Microscope
Magnification Range3.5X - 90X
Package Quantity1
Manufacturers Part NumberGM400TZ
Objective0.7X - 4.5X
Light Power7W, 30W
BrandAmScope

Warranty

Warranty5 yr
