The Aspect® 230 AC/DC TIG welder is perfect for mission critical welds, especially on applications such as aerospace, motorsports, shipbuilding, education and fabrication industries.
Features:
- Portable, lightweight, and easy to transport
- With up to 230 Amps of maximum output You can TIG weld up to 1/4
- Exceptional arc response and stability
- Highly Customizable TIG Machine
- Intellistart™ Technology - Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials
- PowerConnect® Technology - Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase
- AC Auto Balance® Technology - Automatically provides optimal mix of cleaning and penetration when welding aluminum
- Memory Capability - The memory function allows saving up to 9 specific welding procedures
- Fan-As-Needed - The cooling fan operates only when needed to assure proper cooling of the machine
- Green Mode - Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption
- Cooler Power Supply - Built-in Cooler Power Supply comes standard on all models

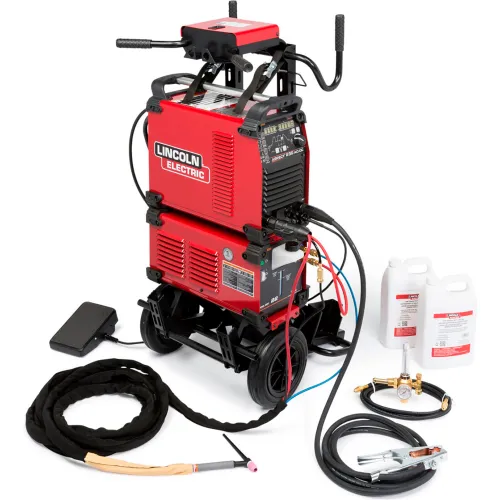

- Includes: (1) Aspect 230 AC/DC TIG Welder, (1) Input Power Cord 10 ft (3m), (1) K4441-1 Cart, (1) K3475-1 Cool Arc® 22, (1) K870 Foot Pedal, (1) KP2414-1 Gas Lens Kit for PTW-20, (1) K1784-4 Water Cooled TIG Torch PTW-20 250A (25ft), (2) KP4159-1 Low Conductivity Coolant (1 gal), (1) K918-4 Zippered Cable Cover (25ft),(1) 3100211 Gas Regulator, (1) K1803-3 Ground Clamp with 15 ft Cable, (1) K1622-5 Torch Twist Mate™ Connector, Cool Arc® 22 | K3475-1, Two Wheeled Cart | K4441-1, One Gallon of Low Conductivity Coolant | KP4159-1, Premium Zippered Cable Cover - 22 ft (6-11/16m) | K918-4, TIG Adapter Kit - Twist-Mate Adapter Assembly | K1622-5, Gas Lens Parts Kit for PTA-9, PTW-20, 20H-320 | KP2414-1, Weld Cable Package - Work Lead - TM & GC500 Ground Clamp (2/0, 350A, 60%) - 15 ft (4-5/8 m) | K1803-3, Aspect® 230 AC/DC | K4340-1, Foot Amptrol™ - 25 ft (7-5/8m) (6 pin) | K870, Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211, PTW-20 TIG Torch (25 ft 3pc) | K1784-4
- Input Current: 21/11/10/5A
- Rated Output: 120/1/50/60: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460/1/3/50/60: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V
