Precision 225 TIG welder is ideal for (GTAW) gas tungsten arc welding on aluminum and other metals. Precision TIG 225 welder features the widest welding range for automotive and motorsports TIG welding.
Simple To Use, Easy To Customize
Simplicity:Easy-to-use operator interface - select mode, polarity and begin welding. When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration.
Adjust for any situation: Cleaning, penetration and pulseWhen welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control.
Enable the TIG pulser feature to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.
Superior stick welder
Also offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010).
Features:
- Easy-to-use operator interface - select mode, polarity and begin welding.
- AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
- Enable the TIG pulser to minimize material distortion from excessive heat input
- Offers outstanding stick welding capabilities with up to 5/32 in. (4.0 mm) electrodes
- Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Micro-Start™ II Technology

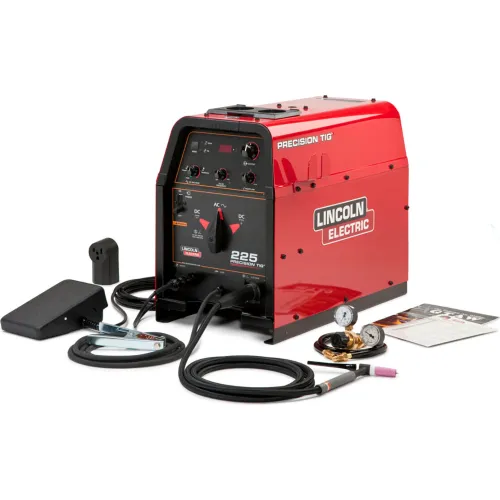

- Includes:(1) Precision TIG 225 Welder, (1) Torch Parts Storage Compartment, (1) Torch Hanger, (1) Work Cable & Clamp 10 ft (3.0 m), (1) Removable Lift Eye, (1) Input Power Cord 9 ft (2-11/16 m) with NEMA 6-50P Plug, (1) NEMA 6-50R Receptacle, (1) TIG Procedure Guide, (1) GTAW (TIG) Handbook, (1) K1782-1 PTA-17 150A TIG torch with 1 pc. Cable, (1) 12 ft (3-5/8 m) Ultra-Flex™ Cable, (1) K1622-1 Twist Mate™ Adapter, (1) KP4722-332 2% Ceriated Tungsten 3/32 in (2-3/8 mm), (1) KP4750-332 Collet, (1) KP4752-332 Collet Body, (1) KP4756-7 Alumina Nozzle 7/16 in (11-1/8 mm), (1) KP4746-L Long Back Cap, (1) Gas Regulator with Hose, (1) K870 Foot Amptrol™ with 25 ft (7-5/8 m) Cable Assembly
- Input Current: 40% Duty Cycle: 61/55A, 60% Duty Cycle: 52/47A
- Rated Output: 130A/40%, 110A/60%
