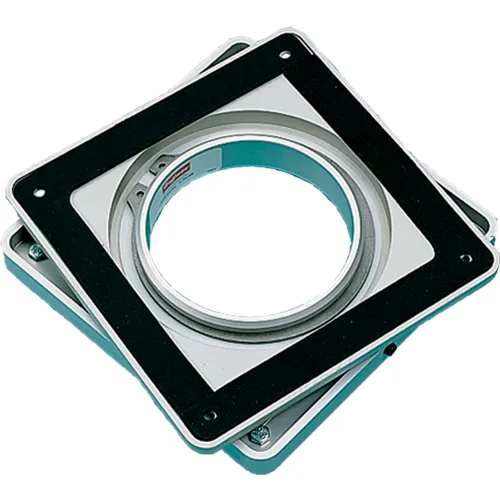

Hoffman ASWV44, Swivel, 1.06X4.00X4.00, Aluminum
A swivel mechanism can be used to provide a machine operator a way to easily rotate an operator interface enclosure to a convenient operating position. Maximum rotation is 350 degrees. The low-profile swivel has a large center opening in addition to a large, wobble-free bearing surface. Swivel mechanism can be locked in any position. The swivel mechanism is designed for use between the bottom of an operator interface enclosure and a pedestal.Do not use the Swivel between an overhead support and an enclosure.The Swivel is cast aluminum with an anodized finish. Mounting hardware and gaskets are furnished. Integral stops are provided at 30-degree increments between 60 degrees and 180 degrees of rotation on catalog number ASWV88 only.
Share
Spec Sheet
Model # :WBB1456195
MPN #: ASWV44
Hoffman ASWV44, Swivel, 1.06X4.00X4.00, Aluminum
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$815.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| A x B x C | 1.06x4.00x4.00 in |
Product Details
| Manufacturers Part Number | ASWV44 |
| Material | Aluminum |
| Description | 4 x 4 Swivel |
| Brand | Hoffman |
