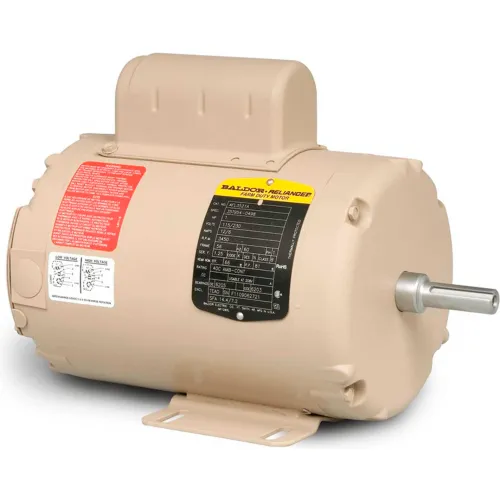

Baldor-Reliance Motor AFL3523A, 2HP, 3450RPM, 1PH, 60HZ, 143TZ, 3535L, TEAO, F1

Actual product may differ from image shown

Baldor-Reliance Motor AFL3523A, 2HP, 3450RPM, 1PH, 60HZ, 143TZ, 3535L, TEAO, F1

Item #: WBB388554

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,309.00 up to 39% OFF

Price: $799.00

$133.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 2HP,3450RPM,1PH,60HZ,143TZ,3535L,TEAO,F1

Features:
  • Lubrication fittings on Nema T frames for eazy on-site maintenance
  • Ball bearings
  • Corrosion protected with epoxy finish
  • Normally-closed thermostats on three phase motors
Typical Applications:
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.

Weights & Dimensions

  • Dimension C 13.61 in
  • Opposite End Bearing Size 6203
  • Weight 50

Product Details

  • Power Factor 82
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • RPM 3450 rpm
  • Poles 2
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code K
  • Insulation Class B
  • RPM Range 3001-3600 rpm
  • Voltage 115/230 V
  • Frame 143TZ
  • Service Factor 1
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEAO
  • Full Load Efficiency 74
  • Brand Baldor-Reliance
  • Full Load Amps 23/11.5 FLA
  • Design Code L
  • Motor RPM 60 Hertz 3450 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number AFL3523A
