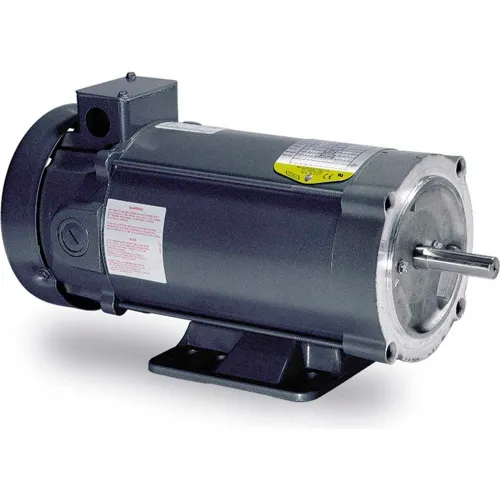

Baldor-Reliance Motor CD5333, .33HP, 1750RPM, DC, 56C, 3513D, TEFC, F1

Baldor-Reliance Motor CD5333, .33HP, 1750RPM, DC, 56C, 3513D, TEFC, F1

Item #: WBB388688

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,869.00 up to 39% OFF

Price: $1,140.00

$190.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, CDP3440, 0.75 HP, 1750 RPM, TEFC, 56C Frame

Baldor-Reliance General Purpose Motor, CDP3440, 0.75 HP, 1750 RPM, TEFC, 56C Frame

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Baldor-Reliance Motor CDP3445, 1HP, 1750RPM, DC, 56C, 3435P, TEFC, F1

Baldor-Reliance Motor CDP3445, 1HP, 1750RPM, DC, 56C, 3435P, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .33HP,1750RPM,DC,56C,3513D,TEFC,F1

Features:
  • TEFC enclosure
  • Shunt wound
  • Class F insulation
  • Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted)
  • NEMA C-face and removable base (except on explosion proof models)
  • Base welded on type 3513D only
  • NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding
  • No dual mounting base holes on 35D, 75D or 91D type
Typical Applications:
Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Weights & Dimensions

  • Dimension C 13.85 in
  • Frame Size 56C
  • Base RG
  • Weight 32

Product Details

  • Baldor Motor Type 3513D
  • Mounting Location Rigid
  • Nameplate RPM 1750 rpm
  • Ambient Temperature 40 °C
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • ODE Bearing 6203
  • Field Full Load Amps .5/1 FLA
  • Frame 56C
  • Horsepower 1/3 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Armature Voltage 90 V
  • Field Voltage 100/50 V
  • Brand Baldor-Reliance
  • DE Bearing 6205
  • Motor RPM 60 Hertz 1750 rpm

Compliance & Certifications

  • Electrical Specification Number 35WGZ387
  • Mechanical Specification Number 35LYP445
  • Specification Number 35P445Z387
