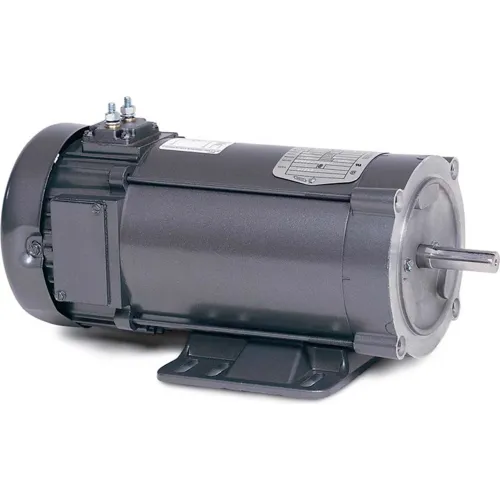

Baldor-Reliance Motor CDP3440-V12, .75HP, 1800RPM, DC, 56C, 3430P, TEFC, F1

Baldor-Reliance Motor, .5HP,1750RPM,DC,56C,3336P,TENV,F1 Features: NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized 3300P motors are TENV,all others are TEFC No dual mounting base holes on 33P type Typical Applications: Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Baldor-Reliance Motor, .75HP,1750RPM,DC,56C,3528D,TEFC,F1 Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Baldor-Reliance Motor, 1HP,2500RPM,DC,56C,3428P,TEFC,F1 Features: NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized 3300P motors are TENV,all others are TEFC No dual mounting base holes on 33P type Typical Applications: Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Baldor-Reliance Motor, .25HP,1750RPM,DC,56C,3320P,TENV,F1 Features: NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized 3300P motors are TENV,all others are TEFC No dual mounting base holes on 33P type Typical Applications: Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Baldor-Reliance Motor, .75HP,1750RPM,DC,56C,3428D,TEFC,F1,N Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.
