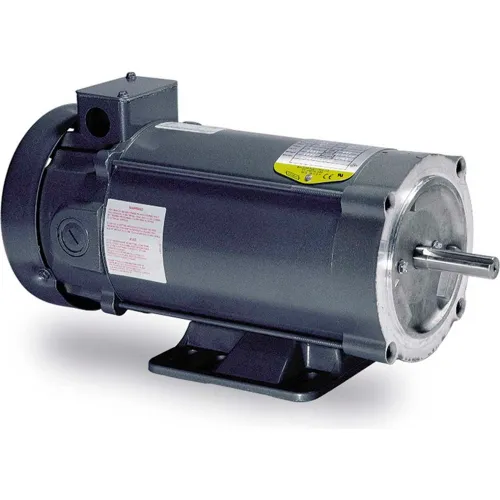

Baldor-Reliance Motor CDP3580, 1.5HP, 2500RPM, DC, 145TC, 3524P, TEFC, F1

Baldor-Reliance Motor, .5HP,1800RPM,DC,56C,3424P,TENV,F1 Features: NEMA C-face Class F insulation Double sealed ball bearings Top-mounted terminal studs Not tach adaptable 1/4 - 1/2 Hp are TENV 1 Hp are TEFC Typical Applications: Battery operation for portable pumps, fans, augers, winches and lifts.

Baldor-Reliance Motor, .25HP,1800RPM,DC,56C,3416P,TENV,F1 Features: NEMA C-face Class F insulation Double sealed ball bearings Top-mounted terminal studs Not tach adaptable 1/4 - 1/2 Hp are TENV 1 Hp are TEFC Typical Applications: Battery operation for portable pumps, fans, augers, winches and lifts.

Baldor-Reliance Motor, .5HP,1800RPM,DC,56C,3420P,TENV,12V Features: NEMA C-face Class F insulation Double sealed ball bearings Top-mounted terminal studs Not tach adaptable 1/4 - 1/2 Hp are TENV 1 Hp are TEFC Typical Applications: Battery operation for portable pumps, fans, augers, winches and lifts.

Baldor-Reliance Motor, 2HP,1750RPM,DC,184C,3646D,TEFC,F1 Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Baldor-Reliance Motor, 3HP,1750RPM,DC,215C,7544D,TEFC,F1 Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.
