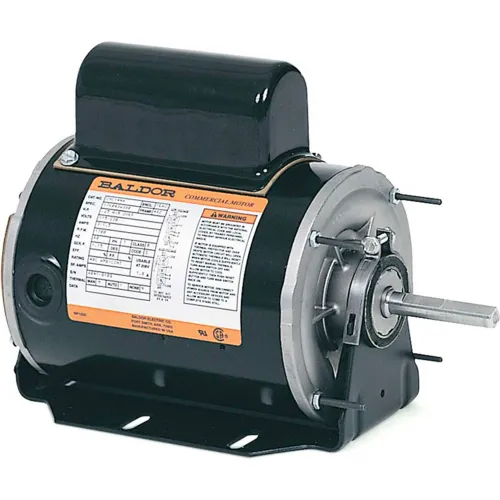

Baldor-Reliance Motor CHC345A, .5 AIR OVERHP, 1700RPM, 1PH, 60HZ, 56, 1720C

Baldor-Reliance Motor, ... Features: 1.0 service factor 40°C ambient Automatic thermal overload Ball bearing Class B insulation Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud Heavy gage steel yoke with 180° slot for wide angle rotation Permanent split capacitor Pull chain switch (2spd only) for high and low speed Reversible rotation Shaft slinger Terminal panel with quick connections Typical Applications: Designed for air circulation

Baldor-Reliance Motor, 5-7 AIR OVERHP,3450RPM,1PH,60HZ,184TZ,36 Features: TEAO design prevents entrance of rodents, insects and other foreign matter High full load efficiency for reduced operating cost No mechanical switch to wear No noise and vibration from regeneration Less sensitive to voltage variations Soft start Thermostats Epoxy paint 1.00 Service Factor Typical Applications: Specifically engineered for use on vane axial fan crop dryers.

Baldor-Reliance Motor, 2HP,3450RPM,1PH,60HZ,56YZ,1928L,OPEN,F1 Features: 40°C ambient 60 hertz not reversible Aluminum endplates Ball bearings Capacitor start Stainless steel shaft extension Terminal panel with quick connections on single phase Automatic thermal overload Ground screw in lead end endplate Shaft slinger Typical Applications: Commercial pumps | Residential pumps | Swimming pool pumps, etc.

Baldor-Reliance Motor, ... Features: 1.0 service factor 40°C ambient Automatic thermal overload Ball bearing Class B insulation Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud Heavy gage steel yoke with 180° slot for wide angle rotation Permanent split capacitor Pull chain switch (2spd only) for high and low speed Reversible rotation Shaft slinger Terminal panel with quick connections Typical Applications: Designed for air circulation

Baldor-Reliance Motor, ... Features: 40°C ambient 60 hertz not reversible Aluminum endplates Ball bearings Capacitor start Stainless steel shaft extension Terminal panel with quick connections on single phase Automatic thermal overload Ground screw in lead end endplate Shaft slinger Typical Applications: Commercial pumps | Residential pumps | Swimming pool pumps, etc.
