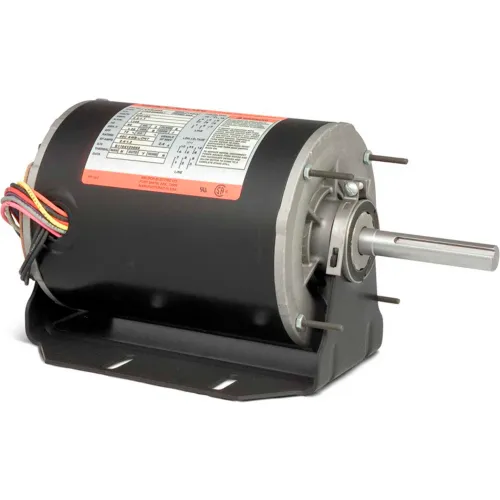

Baldor-Reliance Motor CHM365A, .5HP, 1140RPM, 3PH, 60HZ, 56Z, 1718M, TEAO, F1

Baldor-Reliance Motor, ... Features: 1.0 service factor 40°C ambient Automatic thermal overload Ball bearing Class B insulation Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud Heavy gage steel yoke with 180° slot for wide angle rotation Permanent split capacitor Pull chain switch (2spd only) for high and low speed Reversible rotation Shaft slinger Terminal panel with quick connections Typical Applications: Designed for air circulation

Baldor-Reliance Motor, ... Features: Full torque at zero speed 1000:1 constant torque range Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC) 1/3 thru 500 horsepower Cast Iron construction C-Face with base 143TC thru 449TC Base mount only in frames 5007L-5009L Class H Insulated ISR® (Inverter Spike Resistant) magnet wire Meets NEMA MG 1, Part 31 Typical Applications: Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to ...

Baldor-Reliance Motor, ... Features: Full torque at zero speed 1000:1 constant torque range Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC) 1/3 thru 500 horsepower Cast Iron construction C-Face with base 143TC thru 449TC Base mount only in frames 5007L-5009L Class H Insulated ISR® (Inverter Spike Resistant) magnet wire Meets NEMA MG 1, Part 31 Typical Applications: Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to ...

Baldor-Reliance Motor, 7.50HP,1775RPM,3PH,60HZ,1852C,TENV,FT/2 Features: Compact square laminated steel frame FL210-L440 (FL180 is extruded aluminum) for inverter duty and vector duty 1000:1 constant torque Premium class H insulation, 40 C ambient, 1.0 S.F. Three normally closed thermostats (one per phase) VPI insulation & insulated O.D.E. bearing is standard on all L440 frames Typical Applications: Extruders, conveyors, crane & hoist systems, converting, pumps, web processing, test stands, traction duty, winders, printing.

Baldor-Reliance Motor, 7.5HP,1760RPM,3PH,60HZ,213TC,0750M,TENV Features: Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls Meets NEMA MG 1, Part 31 Typical Applications: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
