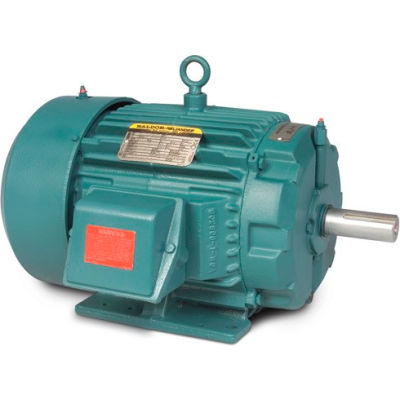

Baldor-Reliance Motor, 30HP,1770RPM,3PH,60HZ,286T,1060M,TEFC,F1
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy gauge steel and cast iron frames
- Ball bearings
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
- Three year warranty
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Weights & Dimensions
- Dimension C 27.93 in
- Weight 480 lbs
Product Details
- RPM Range 1701-1800 rpm
- Voltage 460 V
- Frame 286T
- Service Factor 1.15
- Horsepower 30 HP
- Class Insulation F
- Enclosure Type Totally Enclosed
- Is_Motor yes
- RPM 1760 rpm
- Phase 3
- Enclosure TEFC
- Full Load Efficiency 93.6
- Brand Baldor-Reliance
- Full Load Amps 38 FLA
- Hertz 60 Hz
- Manufacturers Part Number ECP4104T-4
