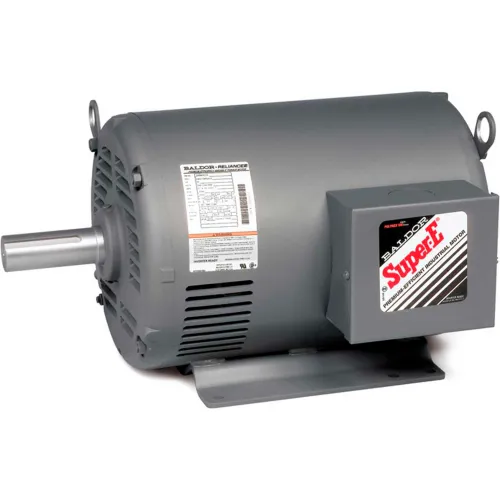

Baldor-Reliance Motor EHFM2535T, 30HP, 1770RPM, 3PH, 60HZ, 286T, 4052M, OPSB, F2

Baldor-Reliance Motor EHFM2535T, 30HP, 1770RPM, 3PH, 60HZ, 286T, 4052M, OPSB, F2

Item #: WBB390493

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,075.00 up to 39% OFF

Price: $3,093.00

$515.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor EHM3154T, 1.5HP, 1760RPM, 3PH, 60HZ, 145T, 3529M, OPSB, F

Baldor-Reliance Motor EHM3154T, 1.5HP, 1760RPM, 3PH, 60HZ, 145T, 3529M, OPSB, F

Baldor-Reliance Motor EHM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EHM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EHFM3218T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3639M, OPSB, F2

Baldor-Reliance Motor EHFM3218T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3639M, OPSB, F2

Baldor-Reliance Motor EHM2523T, 15HP, 1765RPM, 3PH, 60HZ, 254T, 3938M, OPSB, F1

Baldor-Reliance Motor EHM2523T, 15HP, 1765RPM, 3PH, 60HZ, 254T, 3938M, OPSB, F1

Baldor-Reliance HVAC Motor, EHFM2523T-8, 3 PH, 15 HP, 200 V, 1800 RPM, ODP, 254T Frame

Baldor-Reliance HVAC Motor, EHFM2523T-8, 3 PH, 15 HP, 200 V, 1800 RPM, ODP, 254T Frame

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Baldor-Reliance Motor, 30HP,1770RPM,3PH,60HZ,286T,4052M,OPSB,F2

Features:
  • Heavy gauge steel frame construction
  • Ball bearings
  • Grease reduced vibration
  • Suitable for mounting in any position
  • EHM models meet NEMA Premium® efficiency and inverter-ready
  • 3 year warranty
  • HM models meet EPAct efficiencies
Typical Applications:
Heating, ventilation and air conditioning fans and blowers

Product Details

  • Mounting Location Rigid
  • Number of Speeds 1
  • Rotation CCW/CW °
  • Poles 4
  • Ambient Temperature 40 °C
  • Drive End Flange Standard
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 286T
  • Rated RPM 1770
  • Service Factor 1.15
  • Enclosure Type Open/Drip Proof
  • Horsepower 30 HP
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure OPSB
  • Full Load Efficiency 94.1
  • Brand Baldor-Reliance
  • Bearing Type Ball
  • Full Load Amps 70/35 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1770 rpm
  • Thermal Protection None
  • Hertz 60 Hz
  • Manufacturers Part Number EHFM2535T

Weights & Dimensions

  • Width 0.5 in
  • Length 26.06 in
  • Height 0.5 in
  • Drive End Bearing Size 6311
  • Shaft Diameter 1.875 in
  • Frame Size 286T
  • Opposite End Bearing Size 6309
  • Length Less Shaft 0.5 in
  • Weight 378 lbs

Compliance & Certifications

  • Certifications CSA; UR
