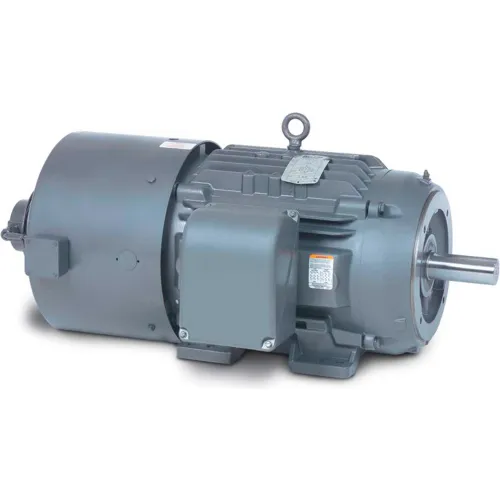

Baldor-Reliance Motor IDM3774T-5, 10HP, 1760RPM, 3PH, 60HZ, 215TC, 0748M, TEBC, F

Baldor-Reliance Motor IDM3774T-5, 10HP, 1760RPM, 3PH, 60HZ, 215TC, 0748M, TEBC, F

Item #: WBB390463

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,252.00 up to 32% OFF

Price: $3,579.00

$596.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor, 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEBC,F

Features:
  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

Weights & Dimensions

  • Dimension C 30.07 in
  • Opposite End Bearing Size 6206
  • Weight 196 lbs

Product Details

  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEBC
  • Phase 3
  • Slip Hertz 1.3 Hz
  • Magnetizing Current 4.1 A
  • Full Load Efficiency 92.4
  • Brand Baldor-Reliance
  • Blower Phase 1
  • Full Load Amps 9.8 FLA
  • Design Code A
  • Motor RPM 60 Hertz 1760 rpm
  • Hertz 60 Hz
  • Max RPM 4000 rpm
  • Rotor-Inertia 1.18
  • Blower Amps 2.6 A
  • Mounting Location Rigid
  • Bearing Drive End 6307
  • RPM 1760 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • Blower Volts 115 V
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Blower Hertz 60 Hz
  • Voltage 575 V
  • Frame 215TC
  • Service Factor 1
  • Horsepower 10 HP
