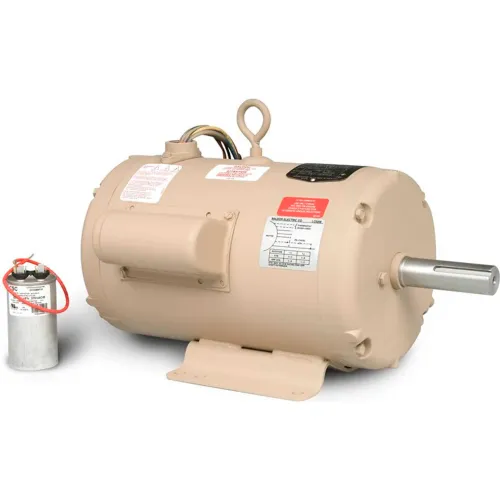

Baldor-Reliance Motor UCLE1015, 10-15HP, 3500RPM, 1PH, 60HZ, 215Z, 3750LC, TEA

Actual product may differ from image shown

Baldor-Reliance Motor UCLE1015, 10-15HP, 3500RPM, 1PH, 60HZ, 215Z, 3750LC, TEA

Item #: WBB390826

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,708.00 up to 39% OFF

Price: $2,260.00

$376.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor, 10-15HP,3500RPM,1PH,60HZ,215Z,3750LC,TEA

Features:
  • Shaft 3/4 longer than NEMA standard
  • Shaft keyed, drilled and tapped with internal 1/4-20 tap 1 deep
  • 1.00 Service Factor
  • Thermostats
  • Epoxy paint
Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Weights & Dimensions

  • Dimension C 18.56 in
  • Opposite End Bearing Size 6206
  • Weight 160

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 6307
  • RPM 3500 rpm
  • Poles 2
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code K
  • Insulation Class F
  • RPM Range 3001-3600 rpm
  • Voltage 230 V
  • Frame 215Z
  • Service Factor 1
  • Horsepower 10 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEAO
  • Phase 1
  • Brand Baldor-Reliance
  • Full Load Amps 46-61 FLA
  • Design Code -
  • Motor RPM 60 Hertz 3500 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number UCLE1015
