Baldor-Reliance Motor VL3505, .5HP, 1140RPM, 1PH, 60HZ, 56C, 3528L, TEFC, F1

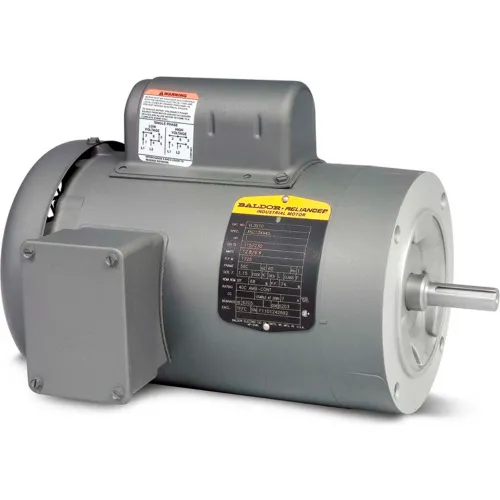

Actual product may differ from image shown

Baldor-Reliance Motor VL3505, .5HP, 1140RPM, 1PH, 60HZ, 56C, 3528L, TEFC, F1

Item #: WBB391150

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,426.00 up to 38% OFF

Price: $888.00

$148.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .5HP,1140RPM,1PH,60HZ,56C,3528L,TEFC,F1

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

Weights & Dimensions

  • Dimension C 13.25 in
  • Weight 41

Product Details

  • Power Factor 63
  • Mounting Location C-Face Footless
  • Bearing Drive End 6205
  • Poles 6
  • Drive End Flange C-Face
  • Nameplate RPM 1140 rpm
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class B
  • RPM Range 1101-1200 rpm
  • Bearing Opp Drive End 6203
  • Voltage 115/230 V
  • Frame 56C
  • Service Factor 1.25
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEFC
  • Amps @ 208V 5.1 A
  • Full Load Efficiency 59
  • Brand Baldor-Reliance
  • Full Load Amps 8/4 FLA
  • Design Code N
  • Motor RPM 60 Hertz 1140 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VL3505
