Euromex

Model # :WBB3131548

MPN #: BS.1157-Pli

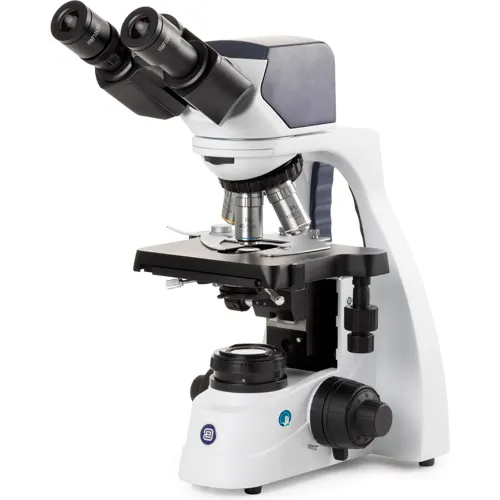

Euromex BScope Digital Microscope, Binocular 5 MP

Product Description
BScope binocular 5 MP digital microscope, HWF 10x/20 mm eyepieces and quintuple nosepiece with plan PLi 4/10/S40/S100x oil infinity corrected IOS objectives, 131 x 152/197 mm stage with integrated mechanical 75 x 36 mm rackless X-Y stage. 3 W NeoLED™ Kohler illumination and integrated power supply. Supplied without rechargeable batteries.
Features:
  • Medical device class I – EU MDR 2017-745
  • APL (Anti-bacterial Protection Layer)
  • Microscopes for research and laboratories
  • Binocular with digital built-in 5Mpx camera
  • HWF 10x/20 mm eyepieces
  • Reversed ball-beared quintuple nosepiece with slot for polarization filter
  • Plan IOS objectives
  • Rackless integrated X-Y mechanical stage
  • 3 W NeoLED™ adjustable illumination system
  • Integrated carrying grip
  • Cable Storage System
  • Integrated 5.0 MP CMOS color USB.2 camera
  • 7 frames per second (2592 x 1944 pixels)
  • 27 frames per second (1280 x 960 pixels)
  • ImageFocus Alpha software
  • Package Include: Image Focus Alpha software, Power Cord, Dust Cover, 5Ml immersion oil, USB2.0 Cable, Micrometer slide
  • 10 Years warranty (2 years on camera)


PRICE
$2,425.00

1
1
Ships in 21 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width12 in
Weight19.9 lbs
Cable Length150 cm (59 In)

Product Details

LightingNeo LED
Calibration FunctionYes
Frame Rate7 FPS, 27 FPS
Working Distance4x (21mm), 100x (0.36mm)
Flexible LED ControlYes
MaterialMetal
Wireless ReadyNo
Manufacturers Part NumberBS.1157-Pli
BrandEuromex
TypeDigital Microscope
Package IncludesSoftware, Power Cord, Dust Cover, Immersion oil, USB2.0 Cable, Micrometer slide
ColorWhite
Save FormatsJPG, TIF, BMP, Dicom
Resolution2592 x 1944 pixels
Automatic Magnification ReadingYes
Operating SystemWindows & Mac OS
Megapixels5
Package Quantity1
DescriptionBScope Digital Microscope
Magnification Range40X - 1000X
SensorCMOS

Warranty

Warranty10 (Microscope), 2 (Electrical Parts and Digital Camera) yr

Compliance & Certifications

CertificationsMedical device Class I - EU MDR 2017-745
